รายละเอียดสินค้า:
|
| รายละเอียดของฟิล์ม: | 80×300 มิลลิเมตร, 80×360 มิลลิเมตร, 354 × 430 มิลลิเมตร | เวลาในการพัฒนา: | 1-6 นาที (ช่วงการตั้งค่า) |
|---|---|---|---|
| ปริมาณถัง: | กำลังพัฒนา 7.5 แกลลอน ซ่อม 7.5 แกลลอน ล้าง 13 แกลลอน | จำนวนฟิล์ม: | ฟิล์ม 80×360 มม. สามารถพิมพ์ได้ 260 แผ่นต่อชั่วโมง (เวลาในการพัฒนา: 2 นาที) |
| อุณหภูมิการพัฒนา: | 20 ถึง 40 องศา | แหล่งพลังงาน: | 220 ~ 240V10A 50 หรือ 60Hz |
| เน้น: | constant temperature X-ray film washer,X-ray flaw detector washer,NDT testing film washer |
||

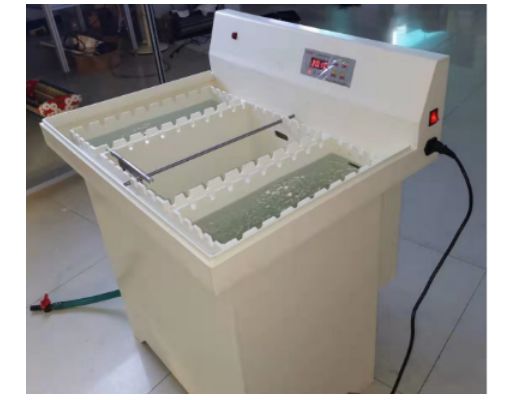

Ndt Testing Instruments Constant Temperature X-Ray Film Washer
I. working principle:
According to the principle of automatic film washer, the developer and fixer are stirred (circulated) to the set temperature. Will be installed X-ray film wash piece into the washing machine is developed grooves, the washing machine automatic timing, to set a time (time setting range: 1-6 minutes) after the buzzer warning sound, working people can wash piece frame from developing slot (stop warning buzzer sounds) into the into the stop show slot (water tank) directly into 1-5 seconds into the fixing bath immediately, 1-1.5 times the fixing time is developing, the last film to be included in the water tank, water tank is developing with the time 1-1.5 times. Take out the X-ray film and place it directly in the film dryer to dry or air. At this point, the development process is complete and you have the perfect industrial film.
II.Technical parameters
| Technical parameters | Details |
|
Film specifications: 80×300mm, 80×360mm, 354×430mm Development time 1-6 minutes (setting range) Tank volume developing 7.5 gallons, fixing 7.5 gallons, washing 13 gallons Film amount: 80×360mm film can develop 260 sheets per hour (development time: 2 minutes) Development temperature can be adjusted from 20 to 40 degrees The fixing temperature is automatically adjusted according to the developing temperature The water temperature is 5 ~ 30 degrees Water consumption 2 l/min for film development (automatic water loading) Power source 220~240V10A 50 or 60Hz Weight 55kg (no liquid in tank) 65kg (filled with water) Volume 72×57×89 cm (length × width × height) |
III. Functional features
1. Automatic timing of development: when a film washing frame is put into the development tank, the machine will automatically start timing. After reaching the set time, the user will be reminded that the development time has reached (buzzer sound).
2. Deli dl-450 is equipped with a film viewing light and a dark room red light, which provides convenience for film detection after film washing and greatly improves the working efficiency
3. The development tank of deli dl-450 adopts electronic refrigeration system, which can greatly reduce the noise of the film washer and improve the film washer environment.
