รายละเอียดสินค้า:
|
| พลัง: | 220VAC | ความถี่: | 50-60เฮิร์ต |
|---|---|---|---|
| ปัจจุบัน: | เอซี2เอ | สนามแม่เหล็ก: | เครื่องปรับอากาศ |
| ยก: | > 7.5กก | อุณหภูมิในการทำงาน: | -10-50 องศาเซลเซียส |
| เน้น: | 220V yoke flaw detector,handy magnetic particle tester,no power controller flaw detector |
||

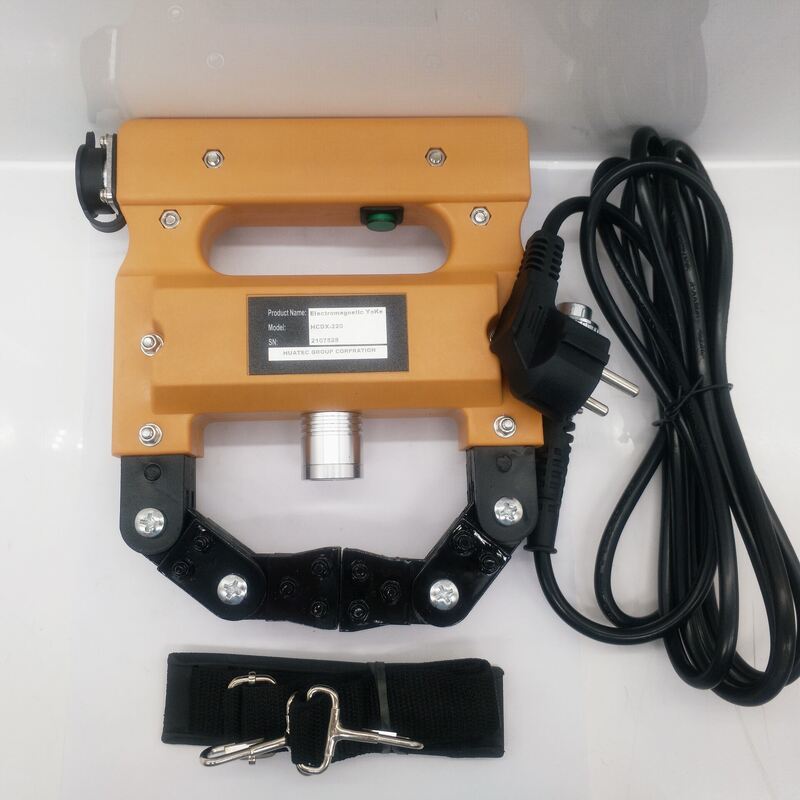

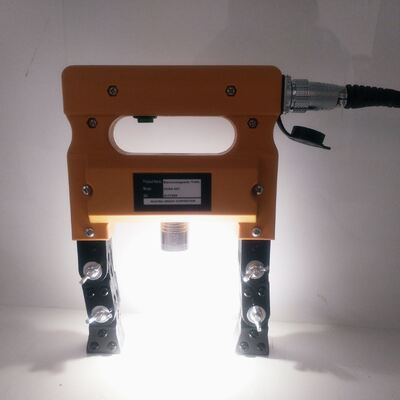

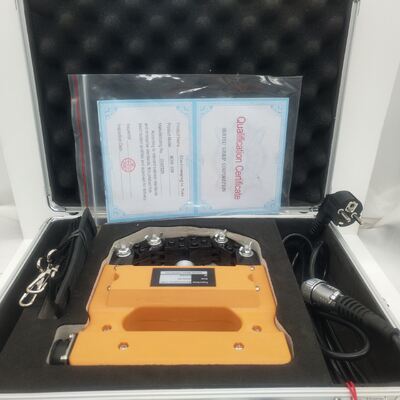

No Power Controller Direct Contact with 220V Power Handy Yoke Flaw Detector
Product overview
Portable handheld equipment for magnetic particle inspection
Magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight, easy to carry and so on. It is suitable for magnetic particle inspection of surface and near surface defects of all kinds of iron and steel structural parts, boilers, pressure vessels, pressure pipelines and various types of welded ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries. The flaw detector can be directly connected to AC power, or alternatively equipped with AC magnetized power supply and DC magnetized power supply, efficient and light. It is especially suitable for welding seam inspection of ship hull, welding seam inspection of steel structure in high altitude and internal operation of pressure vessel.
The instrument meets the requirements of JB/T7411-2012 "Technical Conditions of Electromagnetic Yoke Flaw Detector" standard.
Standard Practice for Magnetic Particle Testing——ASTM E1444-05
Product features
1, Compact size, handy and light weight, robust construction is safe for operator
2. One-piece forming, comfortable hand feel.
3. Two power supply modes can be selected freely: single-phase AC power supply (straight plug mode); DC magnetization power supply (dc battery pack)
4.Strong and rugged construction for continuous inspection
Technical Parameters
|
Item |
HCDX-220AC
|
HCDX-220DC
|
|
| Power | / | 220V50Hz 12V | |
| Power source | 220V 50Hz | 220V 50Hz | |
| Rechargeable Battery | / | MF12—7.2AH | |
| Working current | AC1.4A |
AC1.4A DC1.7A |
|
| Charging time | / | 8~15h | |
| Battery working time | / | 6hours up | |
| Testing time | 100sec on 100sec off | 100sec on 100sec off | |
| Pole distance | 0~200mm | 0~200mm | |
| Lifting capacity | A C | >5.5kg | >5.5kg |
| D C | / | >26kg | |
| Yoke weight | Probe | 3.1kg | 3.1kg |
| Battery pack | / | 2.9kg | |
| Size (㎜) | Probe | 208×52×146 | 208×52×146 |
| Battery pack | / | 160×70×100 | |
| Charger | / | 75×50×40 | |
