รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องทดสอบความแข็งของดินสอ | โหลดน้ำหนัก: | 1,000ก. / 750ก. / 500ก |
|---|---|---|---|
| มุมการวัด: | 45° | สามจุดสัมผัส: | สองล้อ แกนดินสอ |
| เน้น: | pencil hardness tester for scratch testing,hardness testing machine with pencil method,pencil scratch tester for material hardness |
||

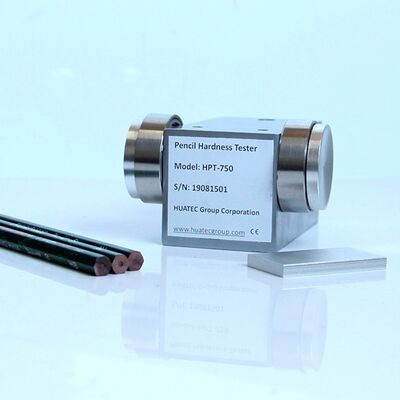

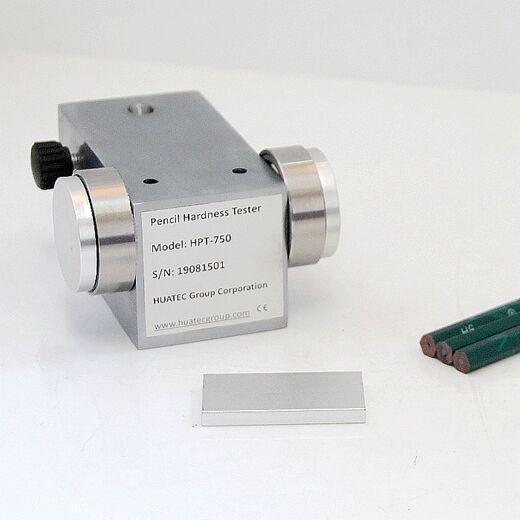

Pencil Hardness Tester Applied the Pencil Scratch Method
Application
Coating hardness is the neccessary measurement for the performance of coatings.This instrument applied the Pencil Scratch Method.It is a fast and economical way to determine the film hardness using th
Principle
The instrument applies mechanical measurement.Keep three point touch the coating(two wheel,a pencil core),and a 45 degree angle between pencil and test surface.Push the instrument sliding,pencil draws the corresponding track in the coating.In the change of different pencil marks,the hardness value of the film can be determined.
Standards
Structure Description
Specification
| Load Weight | 1000g / 750g / 500g |
| Measurement Angle | 45° |
| Three Touch Points | Two Wheels,a Pencil Core |
| Scratch Speed | About 1 mm/s |
| Standard Configuration | Pencil Hardness Tester |
| 1000g Weight | |
| 750g Weight | |
| 13 Pencils(6B-6H) | |
| Eraser | |
| Knife | |
| Horizontal Pad Block | |
| Sandpaper |
