รายละเอียดสินค้า:
|
| ค่าความหนาขั้นตอน: | 2-3-5-8-12-20-25มม | วัสดุ: | เหล็กคาร์บอน / สแตนเลส / อลูมิเนียม / สแตนเลสดูเพล็กซ์ ฯลฯ |
|---|---|---|---|
| เน้น: | NDT thickness calibration block,ultrasonic thickness gauge calibration block,6 step calibration block for NDT |
||

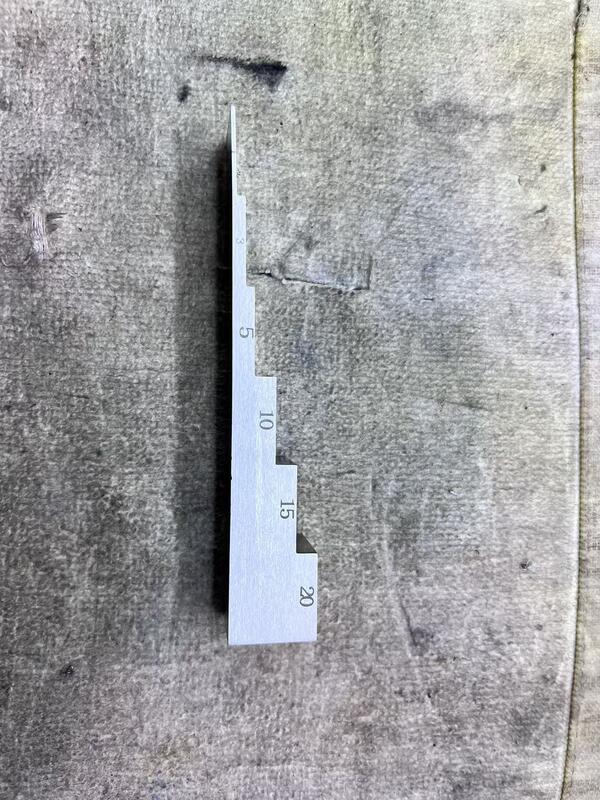

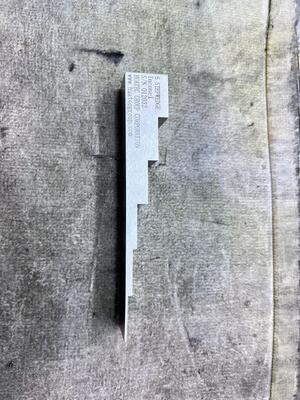

Industrial NDT 6 Step Thickness Calibration Block CS Type for Ultrasonic Thickness Gauge Calibration
Application:
*Daily calibration and linear verification of ultrasonic thickness gauge
*Sensitivity inspection and aging test of ultrasonic probe
Factory inspection, after-sales maintenance and periodic verification of measuring instruments
*NDT training, operator skill assessment and daily operation training
*Quality inspection for petrochemical, power, shipbuilding, pressure vessel industry
*Sound velocity adjustment and zero point calibration of thickness measuring equipment
Basic Information:
| Step Thickness | 1mm, 3mm, 5mm, 10mm, 15mm, 20mm |
| Standard Sound Velocity | 5900 m/s (carbon steel standard) |
| Executive Standard | GB/T 27664, ASTM E797, ISO 16810 |
| Linear Error | ≤ ±0.1mm in full range |
| Working Temperature | -10℃ ~ +60℃ |
| Thickness Tolerance | ±0.05mm |
| Material | Carbon steel / Stainless steel / Aluminum / Duplex stainless steel, etc. |
