รายละเอียดสินค้า:
|
| ช่วงการวัด: | อัตราปริมาณรังสีคือ 0.01 µSv/h~30mSv/h (สามารถขยายได้ถึง 10Sv/h) | ความแม่นยำ: | ≥350CPS/µSv/ชม |
|---|---|---|---|
| การตอบสนองด้านพลังงาน: | 40เคฟ~3เมฟ | ข้อผิดพลาดในการวัด: | ≤10% |
| ค่าเกณฑ์การเตือน: | 2.5 Sv/h และปรับได้ด้วยตัวเอง | ||
| เน้น: | FJ-1304 radiation detector with alarm,adjustable threshold radiation monitoring instrument,multi-purpose radiation detector with light alarm |
||

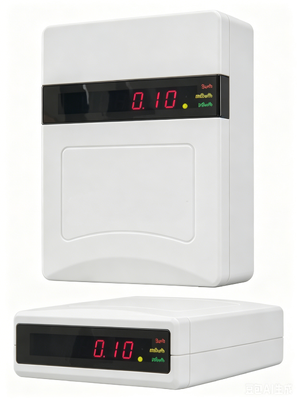

FJ-1304 Multi-purpose Radiation Detector Adjustable Upper Lower Alarm Threshold Sound Light Alarm Radiation Monitoring Instrument
FJ-1304 multi-purpose detector for radiation field is an intelligent instrument. The instrument is equipped with a high sensitivity radiation detector and a high-speed microprocessor for data processing. The LED display is clearly visible. The upper and lower alarm threshold can be set and the sound and light alarm is adopted. The instrument can be used independently, but also can be connected with the main machine produced by our company. The instrument can be powered by a switching power supply or by a battery. It is an ideal instrument for gamma and X-ray radiation dose rate detection in environmental laboratory, irradiation room, nuclear medicine, molecular biology, radiochemistry, nuclear material storage and commodity inspection and other fields.
TECHNICAL INFO
| Measuring range |
Dose rate is 0.01 µSv/h～30mSv/h (can be expanded to 10Sv/h) |
| Accuracy | ≥350CPS/µSv/h |
| Measurement error |
≤10% |
| Energy response |
40Kev～3Mev |
| Alarm threshold value | 2.5 Sv/h, and adjustable on its own |
| Environment |
temperature - 20 ℃ ~ + 60 ℃, relative humidity 98% or less (under 40 ℃ temperature). |
| System power supply |
7 v ~ 24 v DC (standard 12 v switching power supply) |
FEATURES
High efficiency detector, high sensitivity, fast response
The LED displays the dose rate clearly
High brightness and high decibel sound and light alarm
The upper and lower alarm thresholds can be set arbitrarily
Sensor fault alarm.
Wide power supply range: DC 6~40V
Can be fixed use, can also be moved to the workplace as needed
Optional triangular bracket is placed in an easy viewing position
The detector can transmit data wirelessly. (optional)
Built-in RS485 communication interface, can be used independently or multiple network monitoring (need master controller).
*** can be customized according to user requirements.
