รายละเอียดสินค้า:
|
| แสดง: | หน้าจอสี TFT 800X600 ขนาด 11 นิ้ว | พอร์ตทรานสดิวเซอร์: | พอร์ตทรานสดิวเซอร์ PA 160 พิน; พอร์ตทรานดิวเซอร์ทั่วไป Lemo-00 สำหรับ TR หรือ T&R |
|---|---|---|---|
| หน่วยความจำ: | ในตัว: RAM 16G + แฟลช 4GB; การ์ด SD (สูงสุดถึง 32G); ภายนอก: ไดรฟ์ USB | พาวเวอร์ซัพพลาย: | ไฟฟ้ากระแสสลับ：100～240V，50～60Hz；ไฟฟ้ากระแสตรง：12V |
| เน้น: | portable phased array flaw detector,ultrasonic flaw detector with warranty,HPA-500 nondestructive testing equipment |
||

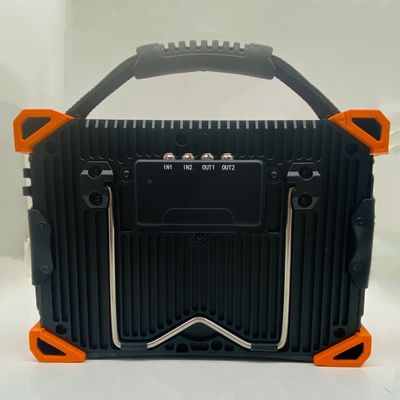

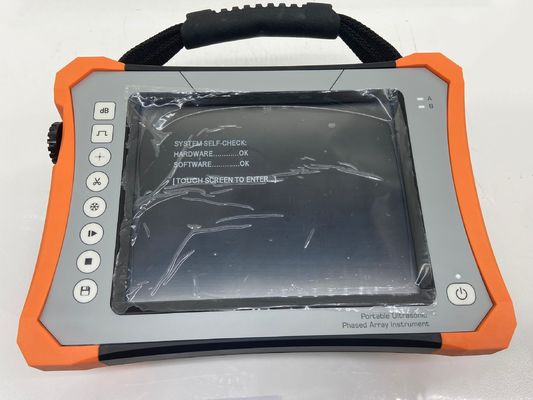

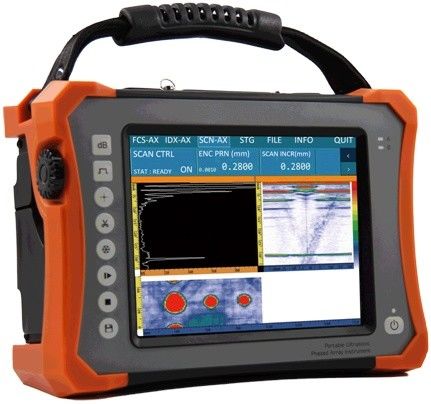

HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.
| Mode | PA | UT | TOFD |
|---|---|---|---|
| Channel | 16:64 | 2 | 2 |
| Display | 11-inch 800X600 TFT color display |
| Transducer Ports | 160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R |
| I/O Ports | USB2.0 Port: 2(qty) |
| HDMI; encoder | |
| LAN(Gigabit-NIC); | |
| WIFI | |
| I/O (commissioning) | |
| 2D Encoder | |
| Memory | In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G); External: USB drive |
| Weight | 3.5Kg (with 1 battery) |
| Dimension | 284mm*202mm*95mm |
| Power Supply | AC:100～240V,50～60Hz；DC:12V |
| Charging | (battery) within or individually |
| Battery Life | 6 Hours |
| Working Power | 24W |
| Language | English |
| Temperature Conditions | Ambiance:-20℃～50℃ Storage:-20℃～60℃ |
| IP | IP54 |
| Mode | PA | UT | TOFD |
|---|---|---|---|
| PRF | 50Hz～10kHz | 50Hz～5kHz | 50Hz～5kHz |
| Voltage | Bipolar, ±45～±100V, with 5V per step | Negative Square Wave, -75V～-250V, with 25V per step | Negative Square Wave, -75V～-250V, with 25V per step |
| Pulse Width | 20ns～800ns, with 5ns per step | 20～800ns, with 5ns per step | 20～800ns, with 5ns per step |
| Damping | 50Ω | 80Ω / 400Ω | 80Ω / 400Ω |
| Sampling Rate | 125MHz | 200MHz | 200MHz |
| Delay Precision | 2.5ns | N/A | N/A |
| Rx Delay | 0～40us | N/A | N/A |
| Bandwidth | 0.5MHz～19MHz | 0.5MHz～15MHz | 0.5MHz～15MHz |
| Gain | 0.0～80dB | 0.0～110.0dB | 0.0～110.0dB |
| Filter | 0.5-9.6MHz,2.5-12.9MHz,3.8-19MHz Optional | broadband, narrowband | broadband, narrowband |
| Rectification | FW | FW | RF |
| Reject | 0~80% | 0~80% | 0~80% |
| Scan Mode | A/L/S/C | A | A/D |
| Triggering | Encoder | N/A | Encoder |
| Scan Line | Max 128 | N/A | N/A |
| Skew | L-scan:-89°～+89° S-scan:-89°～+89° |
N/A | N/A |
| Smart-Cal | Velocity/Delay/ACG/TCG/Encoder | DAC/DGS | Delay/X-Value/PCS/Wave/Encoder |
| Range | 0.0～1000mm, min 1mm | 0.0～2000mm | 0.0～2000mm |
| Displaying Delay (max) | 1000mm | 2000mm | 2000mm |
| Pulse Shift (max) | N/A | 2000mm | 2000mm |
| Unit | mm | mm | mm |
| Gate | A/B | A/B | A/B |
| Gate Start | Available within the range | Available within the range | Available within the range |
| Gate Width | Available within the range | Available within the range | Available within the range |
| Gate Threshold | 0-100% | 5-95% | 0-100% |
| Alarm Signal | Buzzer / LED | Buzzer / LED | Buzzer / LED |
| Spotting | Crest / Flank | Crest / Flank | Crest / Flank |
| Readout | Amp/Path/Horizontal/Depth | Amp/Path/Horizontal/Depth | Amp/Path/Horizontal/Depth |
| Resolution | 0.5mm | 0.1mm | 0.1mm |
