รายละเอียดสินค้า:
|
| ระยะทางสูงสุด: | ระหว่างเซ็นเซอร์ 10 เมตร | ความแม่นยำในการวัด: | ±1% + 0.001มม |
|---|---|---|---|
| ความแม่นยำของเครื่องวัดความเอียง: | 0.1° | ปณิธาน: | 0.01 หรือ 0.001 มม |
| ประเภทเซนเซอร์: | โฟโตไดโอดที่ไวต่อตำแหน่ง 10 x 10 มม | ระดับการป้องกัน: | IP65 |
| พาวเวอร์ซัพพลาย: | แบตเตอรี่นิกเกิลเมทัลไฮไดรด์ (ชาร์จใหม่ได้) | ||
| เน้น: | portable laser shaft aligner,automatic scanning industrial machine tool,roller surface flatness measuring device |
||

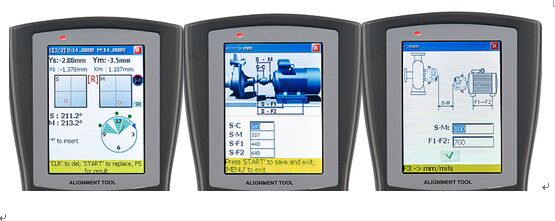

TU3 Portable Laser Shaft Aligner Red Laser Automatic Scanning Industrial Machine Tool Roller Surface Flatness Measuring Device
The TU3 laser instrument is equipped with two laser detectors installed on the shafts. Using the TU3 laser instrument enables the quick and convenient alignment of the connecting shafts of the machine tool or transmission device.
If the detector is aligned, the axis can rotate and the laser instrument will calculate the horizontal and vertical offsets as well as the angle deviation. Additionally, other parameters can be simulated. Therefore, the TU3 laser instrument simulated the spacer plates considering the possible tolerances and thermal expansion. This device also provides other practical functions, such as aligning the screw rolls, measuring the swing feet or measuring the surface flatness. The laser instrument has an internal memory of 2 GB to store the measurement values. Moreover, the device has a USB interface that can transfer data to a computer. Important information is summarized in PDF report format.
Technical Specifications:
| Sensor type | Position-sensitive photodiode 10 x 10 mm |
| Laser type | It can be seen that the laser is red, with a wavelength of 635 - 670 nm, and power less than 1 MW. |
| Maximum distance | 10 meters between the sensors |
| Measurement accuracy | ±1% + 0.001mm |
| Resolution | 0.01 or 0.001 mm |
| Inclinometer Accuracy | 0.1° |
| Interface | USB,Blue tooth |
| Memory | 2 GB |
| Function | Each position is 60...360° horizontally aligned. Vertical alignment Automatic scanning mode Tolerance can be set Foot swing measurement Thermal growth Interval gasket simulation PDF report |
| Shell | With silicone protection |
| Protection level | IP65 |
| Power supply | Nickel-metal hydride battery (rechargeable) |
| Environmental conditions | -10 ...+55 °C |
| Host size | 190x86x38mm |
| Weight | Host:0.5kg,7.5 kg(With packaging box) |
Measured through two laser detectors
- Tolerance can be set
- Integrated inclinometer sensor
- Analog spacer pad
- Measuring horizontal/vertical offsets and angle deviations
- USB and Bluetooth interfaces
- Foot placement measurement
- 2 GB internal memory
- Measuring surface flatness
- Large graphic display
- IP 65 protection level
Delivery List:
1 x TU3 Laser Instrument
2 x Detectors
2 x Detector Installation Kits
1 x Tape Measure
1 x Charger
1 x Cable
1 x Software CD-ROM
1 x USB Cable
1 x User Manual
1 x Transport Box
