รายละเอียดสินค้า:
|
| ระดับความแข็ง: | body{background-color:#FFFFFF} 非法阻断154 window.onload = function () { docu | ช่วงการวัด: | HLD ((170?? 960) |
|---|---|---|---|
| ทิศทางการวัด: | 360° | พอร์ตสื่อสาร: | มินิยูเอสบี |
| แสดง: | ดอทเมทริกซ์ LCD 128×32 จุด | การจัดเก็บข้อมูล: | สูงสุด 350 กลุ่ม เทียบกับเวลาการกระทบ 32~1 |
| ชาร์จไฟ: | 5VDC,220VAC | ||
| เน้น: | Portable Leeb hardness tester OLED,Leeb hardness tester USB,Portable hardness tester non-destructive |
||
| Attribute | Value |
|---|---|
| Hardness Scale | HL, HRC, HRB, HRA, HV, HB, HS |
| Measuring range | HLD（170～960） |
| Measuring direction | 360° |
| Communication port | Mini USB |
| Display | dot matrix LCD 128×32 dots |
| Data storage | 350 groups maxim, relative to impact times 32~1 |
| Charging power supply | 5VDC，220VAC |

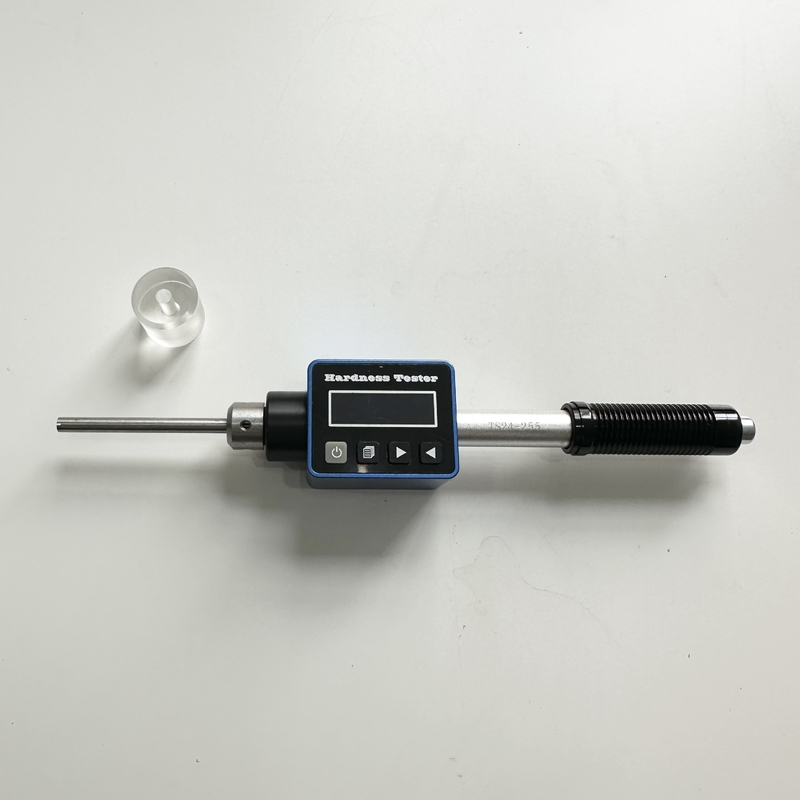

The RHL-110DL portable hardness tester can directly measure different types of hardness values including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV), and Shaw (HS). Compliant with international standards, it meets the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.
With its low-power design and high-performance Li batteries, it achieves ultra-long standby time. The compact and flexible design increases user flexibility.
| Model | RHL-110DL |
|---|---|
| Hardness scale | HL, HRC, HRB, HV, HB, HS |
| Measuring range | HLDL(197 ~ 965), HRB(30.7 ~99.9), HRC(20.6 ~ 68.2), HB(81 ~ 646), HV(80 ~ 950), HS(30.6 ~ 96.8) |
| Clock | Real-time data and time |
| Auto off | 3~5 Minutes without any operation |
| Data Interface | USB,Bluetooth |
| Power | Rechargeable Li Battery, 3.7V |
| Memory | 373~2688 group (Impact times: 32~1) |
| Display | 128 × 36 OLED |
| Continuous Working time | About 30h |
| Charging time | 1.5 ~ 2 hours |
| Overall dimensions | 205.5 × 33 × 30 mm |
| Weight | 110.6g |
| Material | Hardness test method | Impact device type |
|---|---|---|
| DL Steel and cast steel | Rockwell HRC: 20.6～68.2 HRB: 37.0～99.9 HRA |
Brinell HB: 81～646 Vickers HV: 80～950 Shore HS: 30.6～96.8 |

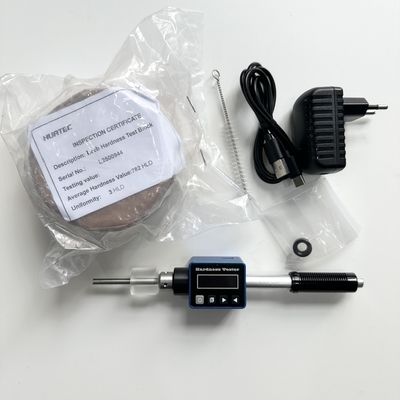

| NO. | Item | Quantity |
|---|---|---|
| 1 | Main unit | 1 |
| 2 | Small support ring | 1 |
| 3 | Cleaning brush (I) | 1 |
| 4 | High value test block | 1 |
| 5 | Charger | 1 |
| 6 | Communication cable | 1 |
| 7 | Software | 1 |
