รายละเอียดสินค้า:
|
| มาตรฐาน: | ISO 2409-1974, GB/T9286-98 | คัตเตอร์หลายใบ: | 1 มม. 2 มม. และ 3 มม |
|---|---|---|---|
| เน้น: | ISO 2409 cross hatch cutter,paint adhesion testing tool,1mm 2mm 3mm cross cutter |
||
| Standard | ISO 2409-1974, GB/T9286-98 |
|---|---|
| Multi-blade Cutters | 1mm, 2mm, and 3mm |

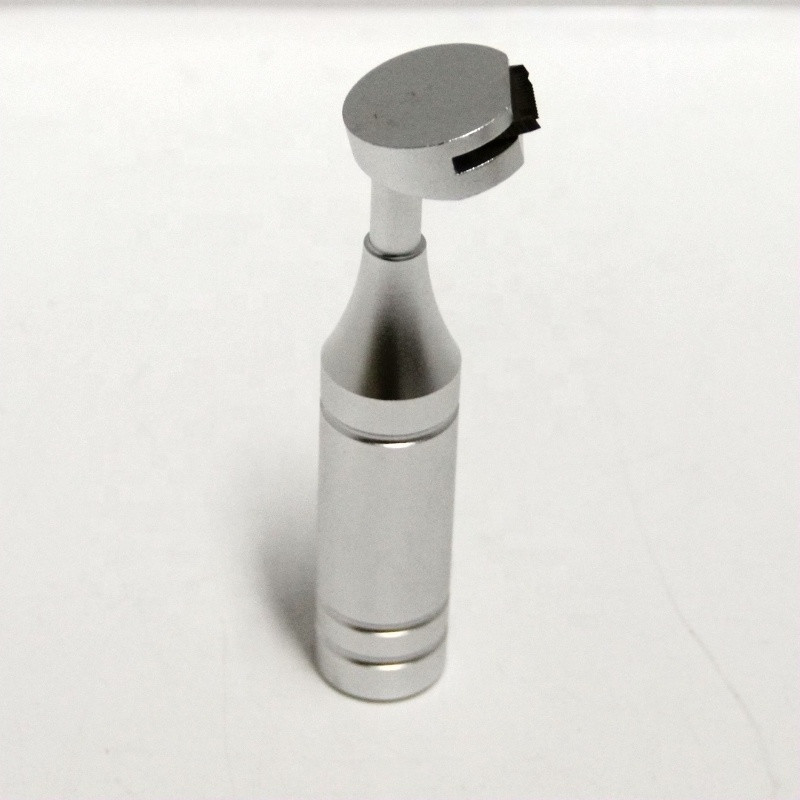

The Cross Hatch Cutter is designed and manufactured in accordance with ISO 2409-1974 and complies with GB/T9286-98 standard. This instrument is primarily used for measuring the grid scratching adhesion of organic paints. Suitable for both laboratory use and various construction site conditions.
Available in three specifications of multi-blade cutters (1mm, 2mm, and 3mm) to accommodate different test conditions:
| No | Standard | Knife Edge | Knife | Knife Distance |
|---|---|---|---|---|
| H-5125 | DIN/ISO | 6 | 1 | 1mm (0.04inch) |
| H-5126 | DIN/ISO | 6 | 1 | 2mm (0.08inch) |
| H-5128 | DIN/ISO | 6 | 1 | 3mm (0.12ch) |
| H-5129 | ASTM | 11 | 1 | 1mm (0.04ch) |
| H-5130 | ASTM | 11 | 1 | 1mm (0.04ch) & 2mm two knifes changeable |
| H-5131 | ASTM | 11 | 1 | 1mm (0.04ch) & 2mm & 3mm three knifes changeable |
| H-5132 | DIN/ISO | 6 | 1 | 1mm (0.04inch) & 2mm two knifes changeable |
| H-5133 | DIN/ISO | 6 | 1 | 1mm (0.04inch) & 2mm & 3mm three knifes changeable |
