รายละเอียดสินค้า:
|
| อุณหภูมิการทํางาน: | -10 ~ +40 องศาเซลเซียส | อุณหภูมิในการจัดเก็บ: | -20 ~ 50 องศาเซลเซียส |
|---|---|---|---|
| ความชื้นสัมพัทธ์: | <80% ไม่มีการควบแน่น | ระยะห่างของอิเล็กโทรด: | 0~210มม |
| ปัจจุบันสูงสุด: | 2.8A | กำลังยกกำลังขั้นต่ำ AC: | >4.5กก. (44N) |
| เน้น: | portable AC magnetic yoke,welding inspection magnetic yoke,non-destructive testing yoke |
||
| Attribute | Value |
|---|---|
| Working temperature | -10 ~ +40°C |
| Storage temperature | -20 ~ 50°C |
| Relative humidity | <80% non condensation |
| Electrode spacing | 0～210mm |
| Maximum current | 2.8A |
| AC minimum power hoisting power | >4.5kg (44N) |

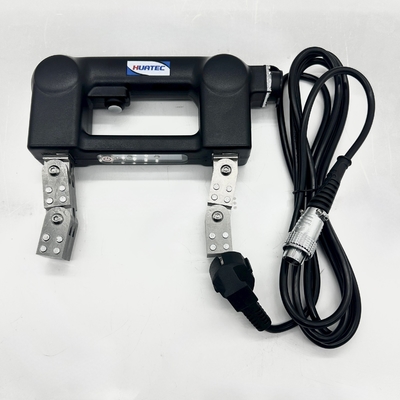

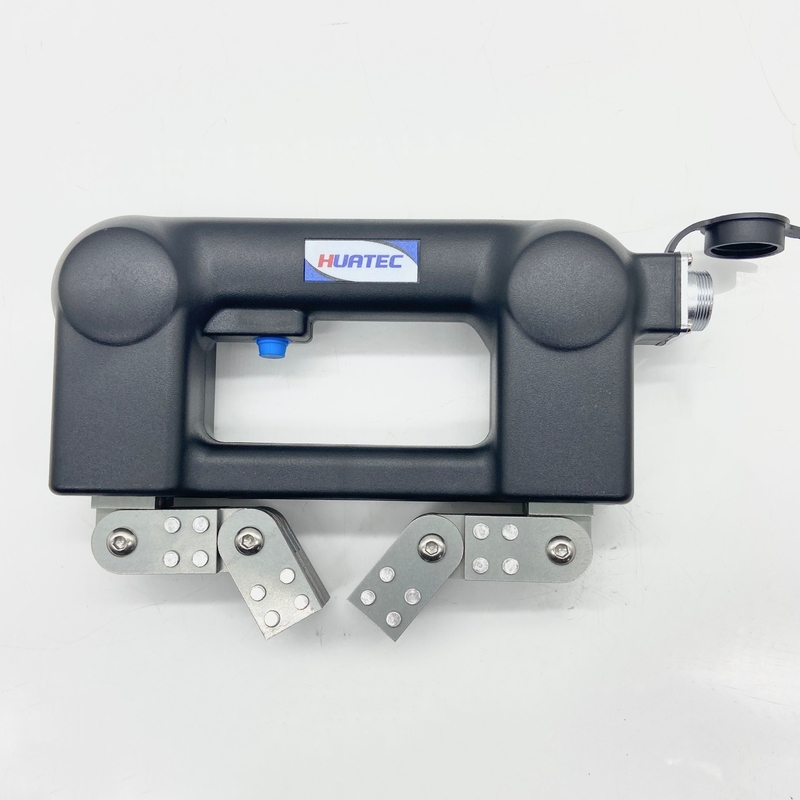

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch, power cord, mainboard, UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
| Model Items | HCDX-Y2 |
|---|---|
| Electrical Requirements | AC110-115V 50/60Hz AC220-230V 50/60 Hz AC240V 50/60Hz |
| Waveform | AC |
| Tangential Field Strength | > 2kA/m at midpoint between legs / poles |
| Working temperature | -10～+40℃ |
| Duty Cycle | 50%, max on time is 90 seconds |
| Ingress Protection (IEC 60259) | IP54 |
| Relative humidity | <80% |
| Sensitivity | ASTM E1444-05,ASME 2007 page number V |
| AC working current | AC2.2A |
| Leg / Pole Span | 0~220mm |
| Leg size | 22*22mm |
| Power cord length | 3M |
| AC Lifting Force | ≥7.1kg (69N) |
| Yoke Weight | 2.3kg |
