รายละเอียดสินค้า:
|
| Loading Stroke: | 160mm | Slider Stroke: | 80mm |
|---|---|---|---|
| Hole depth: | 120mm | Probe: | HA、HD、HOO |
| Resolution: | 0.1H | Value Error: | ±1H |
| Ouput: | Data port, USB | Displays: | 800*480 touch screen |
| Environment: | -10~40℃，20~80%RH | Power: | DC24V5A |
| เน้น: | Automatic Shore hardness tester for rubber,Plastic foam hardness testing machine,Shore A D OO hardness tester |
||

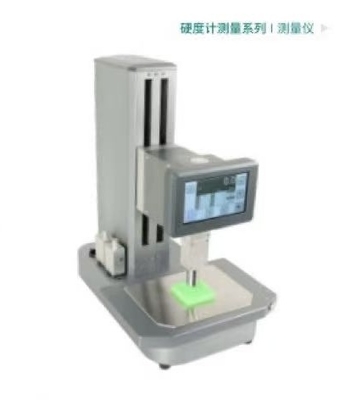

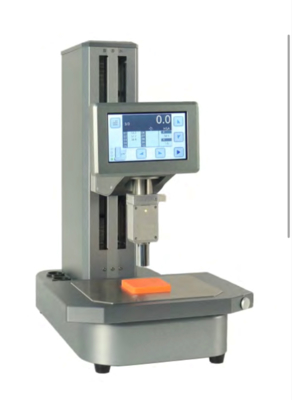

HT-SC Automatic Shore A, D, OO Hardness Tester
Description:
The product confirm with specification JJG304-2003"A-type shore hardness tester", J J G1039-2008"D-type shore hardness tester" to design,that can be used for rubber, plastic and foam hardness measurement. HT-SC function realizes automatic recognition of probe A,D and OO. In addition integrates various functions of shore hardness tester which easy to operate and accurate measurement. Rs232 port can be communicate with PC. Both can be operated by touch screen and button.
Specifications:
| Model | HT-SC |
| Loading | Step motor |
| Loading Stroke | 160mm |
| Slider Stroke | 80mm |
| Hole depth | 120mm |
| Probe | HA,HD,HOO |
| Resolution | 0.1H |
| Value Error | ±1H |
| Ouput | Data port, USB |
| Displays | 800*480 touch screen |
| Environment | -10~40℃,20~80%RH |
| Power | DC24V5A |
Feature:
One-key automatically measurement.
Foam, plastic and rubber hardness measurement.
3 exchangable probe(A, D, OO).
Bi-control both ouch screen and button.
10 points continuous measurement(Max).
Self-locked Screw rod keep stable measurement.
Integrated iron base.
