รายละเอียดสินค้า:
|
| Eyepiece: | WF10X/ф6 | Objective: | 10X, 20X,50X |
|---|---|---|---|
| Total Magnification: | 100X-500X | Focusing range: | 25mm |
| Mechanical tube length: | 160mm | Power supply: | 3.6v |
| เน้น: | portable metallurgical microscope 500x magnification,HSC-500 microscope for non-destructive testing,metallurgical microscope with 100x-500x range |
||

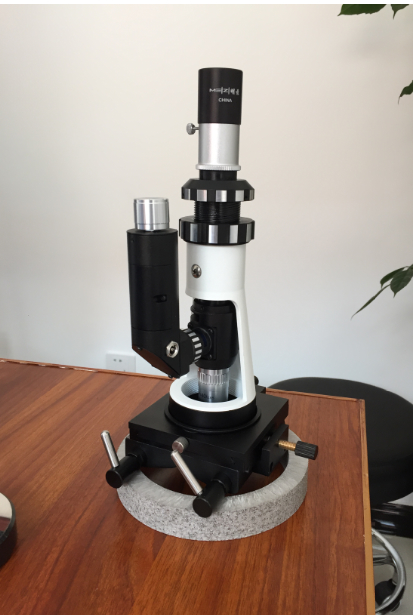

HSC-500 Portable Metallurgical Inspection Sample Organization Analysis Microscope
Product Description:
HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.
Applicable to metallographic inspection of various work pieces which is large or unable to make sample.
No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.
This machine can identify different metal and alloy organization structure.
Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.
Main Parameters:
| No. | Item | Specification |
| 1 | Eyepiece | WF10X/ф6 |
| 2 | Objective | 10X, 20X,50X |
| 3 | Total Magnification | 100X-500X |
| 4 | Focusing range: | 25mm |
| 5 | Mechanical tube length: | 160mm |
| 6 | Power supply | 3.6v |
| 7 | Weight | N.W.: 0.75kg G.W.: 0.9kg |
| 8 | Dimension | Instrument dimension: 230X110X70(mm) |
Standard configuration:
| No. | Item | Main Specification | Unit | Quantity |
| 1 | Main unit | HSC-500 | Set | 1 |
| 2 | Objective | 10X, 40X,50X (optional) | Piece | 1 each |
| 3 | Eyepiece | 10X | Piece | 1 |
| 4 |
Illuminator |
Installed on the main body | Piece | 1 |
| 5 | Battery charger | Piece | 1 | |
| 6 | Magnetic base | Piece | 1 | |
| 7 | C mount adapter | Piece | 1 | |
| 8 | Instruction manual | Piece | 1 | |
| 9 | Calibration certificate | Piece | 1 |
Optional parts:
Eyepiece: 12.5X
Objective: 50X
