รายละเอียดสินค้า:
|
| Working plate diameter: | Standard Φ254mm (optional Φ203mm / Φ230mm) | speed: | 100-1000r/min to turn forward and reverse can be switched |
|---|---|---|---|
| Four files manually: | V1=300r/min, V2=500r/min, V3=600r/min, V4=800r/min (user can be changed) | Eight period of automatic: | Can program eight speed, running time and disc steering switch. |
| เน้น: | HPA-2X metallographic polishing machine,254mm grinding polishing machine,PLC control metallographic equipment |
||

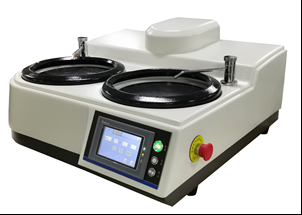

HPA-2X Advanced Metallographic Grinding & Polishing Machine
Product features
Technical parameters
| Item | specifications |
| Working plate diameter | Standard Φ254mm (optional Φ203mm / Φ230mm) |
| speed | 100-1000r/min to turn forward and reverse can be switched |
| Four files manually | V1=300r/min, V2=500r/min, V3=600r/min, V4=800r/min (user can be changed) |
| Eight period of automatic | Can program eight speed, running time and disc steering switch. |
| Motor power | 0.75 kw |
| Power supply | Voltage: AC220V Frequency: 50Hz |
| Overall dimension (length * width * height) | 760 x 730 x 360 |
| Weight | 46kg |
Standard attachments
| Item | Quantity | Item | Quantity |
| Anti-stick disc (254mm) | 2 | Triangle valve | 1 |
| Magnetic working disc (254mm) | 2 | Teflon tape | 1 |
| Inlet pipe Φ 8 | 1 | Quick screw connector SNZ08-04 | 1 |
| Outlet pipe Φ 25 | 1 | stylus | 1 |
| Rubber gasket | 1 | Diamond suspension grinding polishing fluid 6 micron 200 ml | 1 |
| filter screen (60 mesh, double layer) | 4 | hook | 1 |
|
Sandpaper (with back adhesive , diameter 250) 180#, 800#, 1000# |
Each 2
|
Polishing cloth (with back adhesive, 250mm) Flocking (brown), canvas |
Each 1 |
| Operating instruction | 1 | Certificate of approval | 1 |
