รายละเอียดสินค้า:
|
| Power supply: | AC220+5%,50~60Hz | กำลังทดสอบ: | 5～187.5กก. |
|---|---|---|---|
| การวัดความแข็ง: | Brinell： 8 ～ 650hbw Rockwell： 20 ～ 100hr Vickers： 8 ～ 2900hv | หัว - ระยะผนัง: | 200 มม. |
| Max height of specimen: | Rockwell：220mm、 Brinell Vickers：150mm | กำลังขยายของกล้องจุลทรรศน์: | Brinell： 37.5x、 Vickers： 75x |
| Vickers Scale Scale Hardness Resolution: | 0.1แรงม้า | ||
| เน้น: | touch screen hardness tester,digital Brinell Rockwell tester,universal hardness tester with warranty |
||
| Attribute | Value |
|---|---|
| Power supply | AC220+5%,50~60Hz |
| Test force | 5～187.5kgf |
| Hardness measurement | Brinell：8～650HBW Rockwell：20～100HR Vickers：8～2900HV |
| Head - wall distance | 200mm |
| Max height of specimen | Rockwell：220mm、 Brinell Vickers：150mm |
| Magnification of microscope | Brinell：37.5X、 Vickers：75X |
| Vickers scale Hardness resolution | 0.1HV |

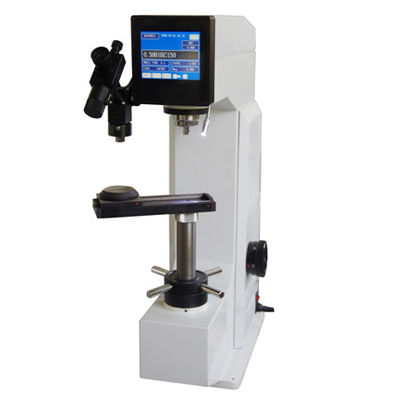

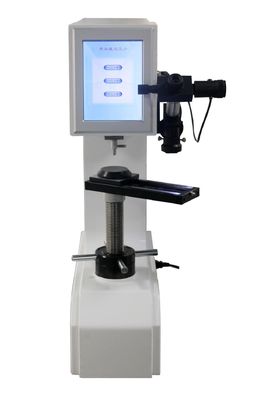

The HBRV-187.5DX is a senior digital hardness tester featuring Brinell, Rockwell, and Vickers test methods with touch screen operation.
| Model | HBRV--187.5DX |
|---|---|
| Test force | 5～187.5kgf |
| Brinell scale | HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25,HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales) |
| Hardness resolution | 0.1HBW |
| Rockwell scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV |
| Hardness resolution | 0.1HR |
| Vickers scale | HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales) |
| Hardness resolution | 0.1HV |
| Objective | 2.5X,5X(10X,20X optional) |
| Magnification of microscope | Brinell:37.5X, Vickers:75X |
| Hardness measurement | Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV |
| Data output | LCD display,U disk |
| Max height of specimen | Rockwell:220mm, Brinell Vickers:150mm |
| Head - wall distance | 200mm |
| Dimension | 560*260*800mm |
| Weight | About 70Kg |
| Power | AC220V _+_ 5%,50-60Hz |
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Lighting (internal lighting, external lighting) | 1 | Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30) | 5 |
| Rockwell,Vickers diamond indenter | Each 1 | Ball indenter(φ1.5875,2.5,5mm) | 3 |
| Eyepiece(DHV-15X) | 1 | Objective(2.5X,5X) | 2 |
| Sliding test table | 1 | Large, medium, V-test sets | Each 1 |
| U memory disk, touch pen | Each 1 | Fuse 2A | 2 |
| Level | 1 | Regulating screw | 4 |
| Power cable | 1 | Dust bag | 1 |
| Certificate, warranty card | 1 | Manual | 1 |
