รายละเอียดสินค้า:
|
| อุณหภูมิในการทำงาน: | -5 ℃ —50 ℃ | ช่วงความถี่: | 5MHz |
|---|---|---|---|
| ช่วงการวัด: | 1.2-200 มม. | ขนาดเวเฟอร์: | 10 มม. |
| เน้น: | ultrasonic wall thickness probe,DA301 thickness measurement probe,non-destructive testing probe with warranty |
||
| Attribute | Value |
|---|---|
| Working temperature | -5℃—50℃ |
| Frequency range | 5MHz |
| Measurement range | 1.2-200mm |
| Wafer size | 10mm |

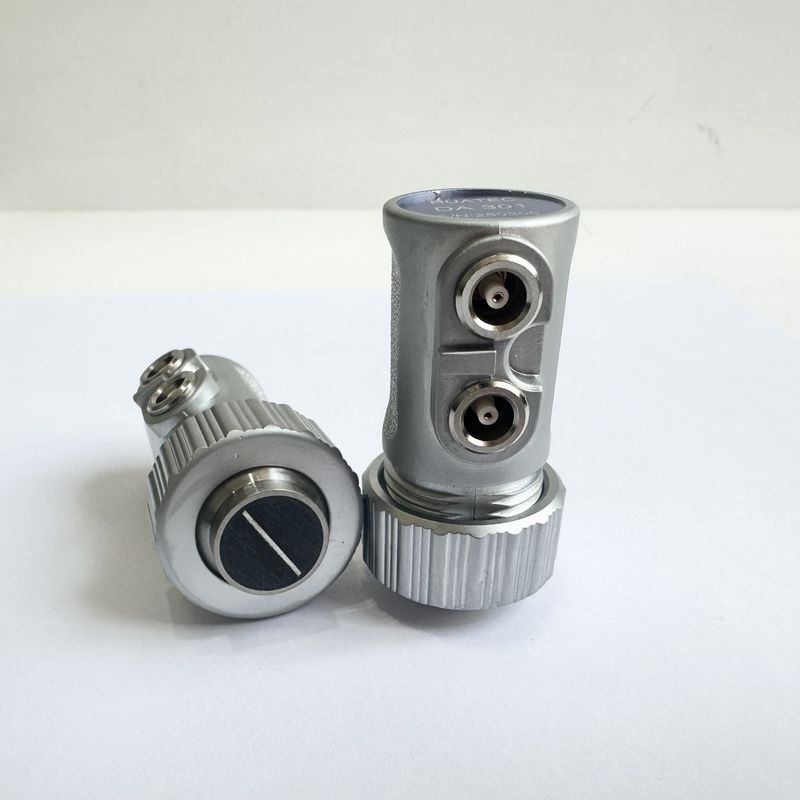

The DA301 Ultrasonic Wall Thickness Measurement Probe features a measurement range of 1.2-200mm, making it suitable for wall thickness measurement of various materials including metals, plastics, and ceramics. This probe is widely used in wall thickness detection for equipment and pipelines across industries such as petrochemicals, aerospace, and mechanical manufacturing.
| Probe frequency | 5MHz |
| Chip size | 10mm |
| Center frequency | 4.93MHz |
| Sensitivity | 27dB |
| Bandwidth (-6dB) | 38% |
| Temperature range | -5℃--50℃ |
| Probe type | Dual-crystal probe |
| Connector type | Lemo 00 |
