รายละเอียดสินค้า:
|
| ข้อมูลจำเพาะของฟิล์ม: | ขั้นต่ำ 60 * 100 มม. ความกว้างสูงสุด 450 มม. และความยาวฟิล์มที่ยาวที่สุดคือ 60 เมตร | เวลาทำงาน: | 4.5 ถึง 14 นาที |
|---|---|---|---|
| ความเร็วชิป: | 300 ~ 100 มม. / นาที | เวลาในการพัฒนา: | 60-180 วินาที (แนะนำ 90 วินาที) |
| ปริมาณการซัก: | 350*430มม. 180 แผ่น/ชั่วโมง; 100*360มม. 720 แผ่น/ชั่วโมง | ปริมาณถัง: | การพัฒนา, การตรึง, การล้างด้วยน้ำแต่ละ 17 ลิตร |
| เน้น: | NDT film developer washing machine,HDL-F430XD film developer,non-destructive testing equipment with warranty |
||

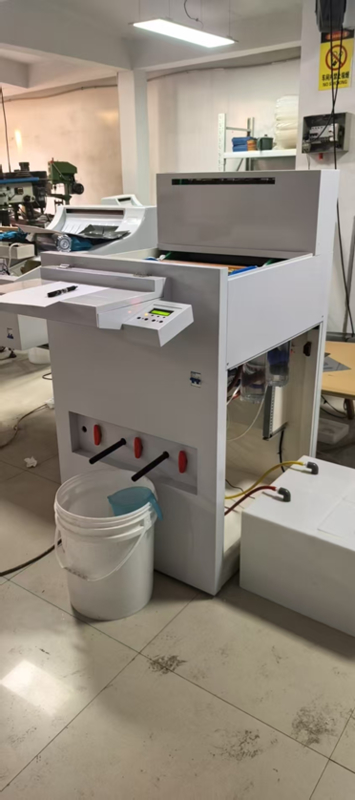

HDL-F430XD NDT Film Developer Washing Machine
HDL-F430XD NDT is a vertical professional industrial flapper designed based on the DT80 of ordi korant's design. It flush the width and speed of high quality, reliability, and various specifications. It is widely used in boiler, shipbuilding, space, pressure vessel, oil and gas pipeline construction, and all kinds of dynamic and pressure equipment. Quality inspection, widely praised by the customers in the testing industry
Technical parameters:
| The size of film | minimum 60 * 100mm, the widest 450mm width and the longest film length is 60 meters |
| film type | various industrial X - ray film, (Film & chip film) |
| The running time | 4.5 to 14 minutes |
| chip speed | 300~100 mm / min |
| development time |
60-180 seconds (recommended for 90 seconds) |
| washing volume |
350*430mm 180 sheets / hour; 100*360mm 720 sheets / hour. |
| tank volume |
development, fixing, water washing each 17 liters |
| supplementary volume |
Manual Supplement and automatic test complement 0-400 ml / m2 |
| The development temperature |
an be adjusted from 20.0-40.0℃ (+ 0.3℃). |
| fixing temperature |
can be adjusted from 20.0-40.0℃ (+ 0.3℃). |
| water washing tank | equipped with independent circulating pump and can also ensure normal washing of machine film |
| The control precision of drying temperature |
at 40-70℃ + 5℃ |
| water temperature |
5~30℃transmission mode helical gear transmission of AC speed reducer motor |
| water consumption |
film is less than 2.5 liters / minutes during operation |
| power |
220~240V12A 2.8KW 50 or 60Hz |
| weight |
135 kilograms |
| volume |
810 x 780 x 1120 mm (long * width * high, without delivery plate). |
Characteristic
*digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

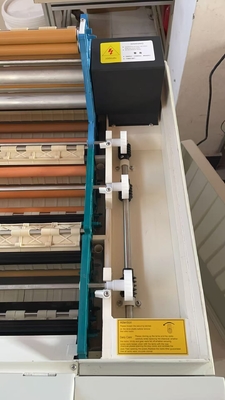

*The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.
*drying system adopts special roller combination and electronic control to ensure hot air drying film.
*anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.
