Magnaflux AC Electromagnetic Yoke HCDX-Y2

Magnaflux AC Electromagnetic Yoke HCDX-Y2

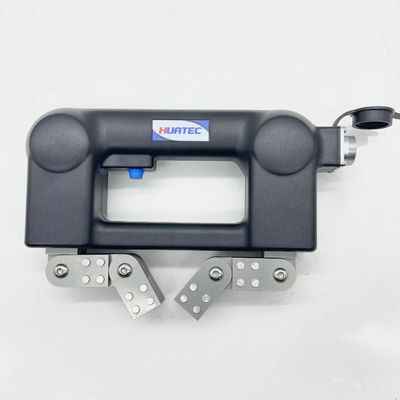

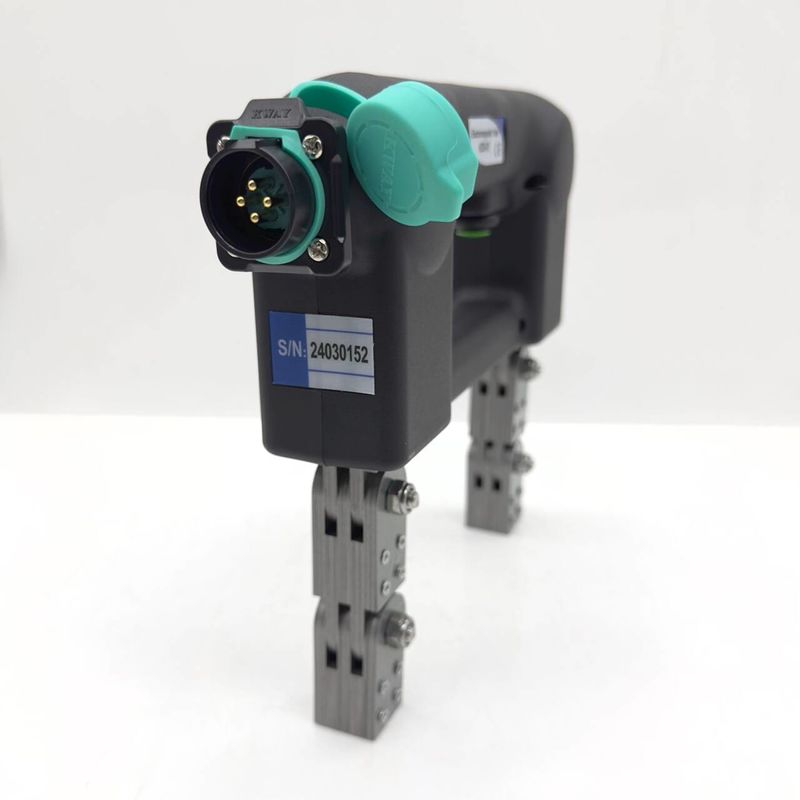

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

BENEFITS

Increase inspector productivity and reduce physical fatigue

• Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.

• Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.

Keep tools in service with a design that’s built to last

• Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.

• Prevent dust and dangerous water damage with an IP54 o-ring sealed housing.

FEATURES

• Ergonomic, light-weight design

• IP54 sealed housing resists dust and water

• Field-swappable power cord

• Isolated, replaceable trigger switch

• Steel shields for leg protection

• Exceeds ASTM lifting specifications

• Convenient carrying case supplied with all yoke shipments

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

• Two power supply modes are optional:

l 110V/220V/240V Single-phase AC power supply (straight plug mode);

l DC magnetization power supply (DC battery pack with digital display screen)

• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.

Parameters index

Note:“X”not included, “●”included

APPLICATIONS

Defect location: Surface Ideal for:

• Field Testing

• Difficult to reach areas

• Spot, weld and in-service inspections Defect examples:

• Seams

• Tears

• Shrink cracks

• Quenching cracks

• Fatigue cracks

SPECIFICATION COMPLIANCE

JB/T7411-2012

ASTM E1444-05

ASTM E709

EN10228-1:1999

ISO 9934

ASTM E 3024
