รายละเอียดสินค้า:
|
| การทำงาน: | เครื่องวัดความหนาของผิวเคลือบด้วยเสียงฉีด ultrasonic ที่ไม่ใช่โลหะ | ใช้งานได้: | การวัดวัสดุฟิล์มบางพิเศษหรือความหนาของชั้นเคลือบ |
|---|---|---|---|
| พิสัย: | 20um – 1800มม | ความถี่: | 4Hz、8Hz、16Hz |
| เน้น: | handheld ultrasonic coating thickness gauge,non-metallic thickness measurement device,TG-6200 coating thickness tester |
||

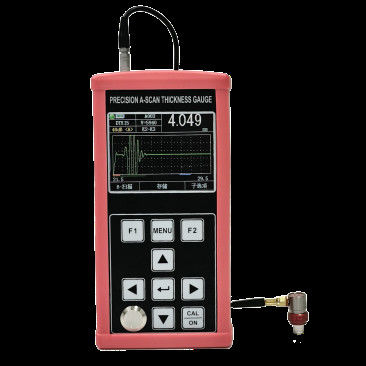

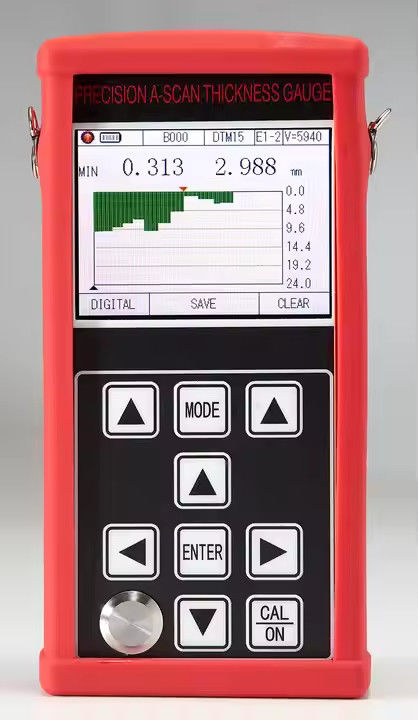

Handheld non-metallic ultrasonic coating thickness gauge TG-6200
Can measure the coating thickness on various metal,
Can measure non-metal (glass, plastic, composite, concrete, wood, etc.) substrates.
Specification parameter
|
item |
TG-6200 |
|
Probe type |
Single crystal/twin crystal |
|
Measuring range |
20um – 1800mm |
|
Measurement frequency |
4Hz,8Hz,16Hz |
|
Resolution |
0.1mm,0.01mm,0.001mm(0.01inch,0.001inch,0.0001inch) |
|
Pulse generator |
Negative square wave emission, pulse width and voltage are automatically matched to the probe |
|
sound velocity Range |
400-19999m/s |
|
Calibration block |
4mm(steel) |
|
Automatic shutdown |
You can choose 5 minutes, 10 minutes, 20 minutes, manual shutdown |
|
Probe calibration |
One-point calibration, two-point calibration, manual calibration |
|
gain |
Automatic gain, manual gain |
|
gain range |
0~80dB |
|
Detection mode |
RF, positive half wave POS, negative half wave NEG, FULL wave |
|
Measurement mode |
(1) Thin-EE: THIN film coating mode (2) MB-E: transmit pulse initial wave to a single echo; (3) E-E: Through the coating measurement, optional any EM-EN echo; (4) THIN: thin wall measurement mode |
|
Numerical model |
Thickness value mode, difference/reduction rate mode, maximum/minimum mode |
|
A- Scan mode |
support |
|
B- Scan mode |
support |
|
Coupling indication |
support |
|
Battery indicator |
support |
|
Language |
English |
|
unit |
mm/inch |
|
Menu operation |
support |
|
Software function |
Dynamic gate Settings, blanking Settings (Blank), Echo blanking Settings (E-Blank), echo freeze, echo Pan and zoom |
|
Storage function |
At the same time, 100,000 thicknesses (100 groups, each group of 1000), 500 groups of A scan waveforms and 500 groups of B scan waveforms are supported |
|
Host program upgrade |
Support host program upgrade |
|
Display screen |
3.5 "true color screen |
|
Data transmission |
Support USB communication, data transfer to the computer |
|
Operating temperature |
-10℃ ~ +50℃, with special requirements up to -20℃ |
|
Operating voltage |
3pcs No. 5 lithium-ion batteries with a low voltage warning when low |
|
Overall dimension |
184 x 85 x 32 (mm) |
|
Machine weight |
250 g(Battery not included) |
|
Standard configuration |
main machine and 1pc special probe for coating No. 5 lithium battery 3, a charger, a set of random files, shock-proof and waterproof instrument case 1 |
