รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องเอ็กซ์เรย์อุปกรณ์ NDT | การทำงาน: | การวัดความหนาของผนังท่อและตู้คอนเทนเนอร์ |
|---|---|---|---|
| ใช้: | การตรวจสอบการเชื่อม | แรงดันไฟหลอด (kVp): | 100-250 |
| เน้น: | NDT X-ray ceramic tube for flaw detectors,XXG2505 X-ray tube for NDT equipment,ceramic X-ray tube with warranty |
||

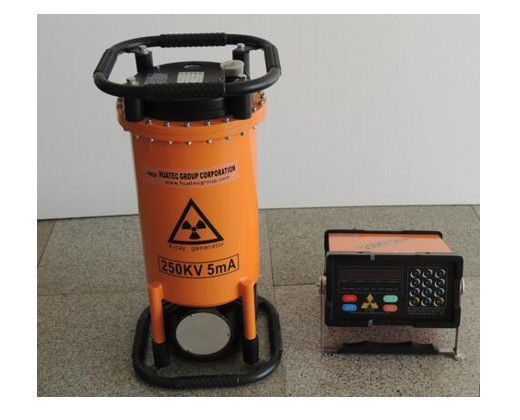

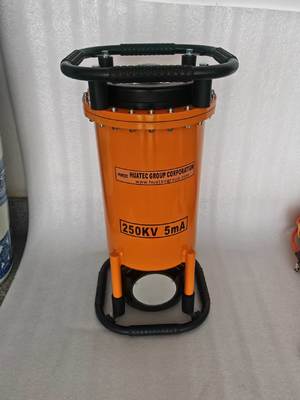

NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505
Characteristics:
The HUATEC XXG series super small size x-ray flaw detector produced by our company, HUATEC Group Corporation, which adopt variable-frequency and constant-frequency pulse techniques. The XXG series controllers has novel structure, perfective performance and convenient to carry etc. characters. It based on microcomputer control system and modular structure, which makes integral machine obtain better stability and reliability. For the convenience of customers, the machine also offers the function of aging, which increase its service life. Our generator adopts gas insulation, forced air cooling and grounded anode, and has excellent properties of small volume and light weight. The products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
Super small XXG2505 Ceramic tube orientation/directional
Main technical parameters
|
TYPE ITEM |
XXG2505 |
||
|
Max Penetration thickness Steel (A3) |
40mm 5minutes |
||
|
Focal Distance |
600mm |
||
|
Exposure Time |
5min |
||
|
Film Type |
Agfa D7 |
||
|
Double lead foil Intensifying screen |
0.03 |
||
|
Darkroom Disposal |
20±2℃ |
||
|
Development |
5minutes |
||
|
Blackness |
1.5 |
||
|
Input |
Voltage (V) |
220V±10% 50―60Hz |
|
|
Capacity (KVA) |
2.0 |
||
|
Output |
Tube voltage (KVP) |
100-250 |
|
|
Tube current (mA) |
5 |
||
|
Stability |
±1% |
||
|
X-RAY Tube |
Focus mm2 |
2.0×2.0 |
|
|
Radiation Angle |
40±5° |
||
|
Sensitivity |
k≤1.8% |
||
|
Operation Mode |
Intermittent operation, Radiating time to cooling time is 1:1 |
||
|
X-Ray Controller |
Dimension |
270×270×140 |
|
|
Weight |
9kg |
||
|
Circuit Structure |
Micro-computer control ,Modular structure,Voice prompt |
||
|
X-RAY Generator |
Cooling |
Force air cooling |
|
|
Insulation |
SF6 Gas Insulation |
||
|
Working Pressure |
0.35Mpa-0.45Mpa |
||
|
Dimension |
270×270×615 |
||
|
Weight (kg) |
21kg |
||
|
Working Temperature |
-10℃―+40℃ |
||
Standard Delivery
|
Directional ceramic X-ray tube |
1 Pcs |
|
|
Generator |
1 Set |
|
|
High voltage joins cable |
1 Pcs |
25 Meters |
|
Controller |
1 Set |
|
|
Power cable |
1 Pcs |
10 Meters |
|
Grounding cable |
1 Pcs |
5 Meters |
|
Accessories |
1 Set |
|
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) |
||
Optional accessories:
Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
