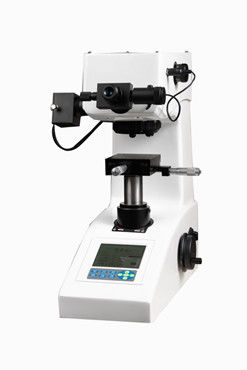

HVS-100MDX-AXY Fully Automatic Turret Digital Display Touch Screen Vickers Hardness Tester

HVS-100MDX-AXY Fully Automatic Turret Digital Display Touch Screen Vickers Hardness Tester

The HVS-100MDX-AXY fully automatic micro Vickers hardness tester consists of two parts:

l  THV-100MDX Automatic Turret Digital Display Touch Screen Vickers Hardness Tester

l  HVS—AXY Vickers hardness automatic measurement and control system

HV-100MDX Automatic Turret Digital Display Touch Screen Vickers Hardness Tester

Ⅰ,Product Introduction:

The HV-100MDXautomatic turret digital touch screen Vickers hardness tester is a:

1.      10 levels of test force, maximum force 100 kg

2.      Automatic Brick Tower

3.      Hardness value automatic numerical display

4.      8-inch touch screen interface, easy to operate

Ⅱ,Main Features

1.      10 levels of test force, meeting all test forces within the standard

2.      8-inch touch screen interface, easy for users to operate;

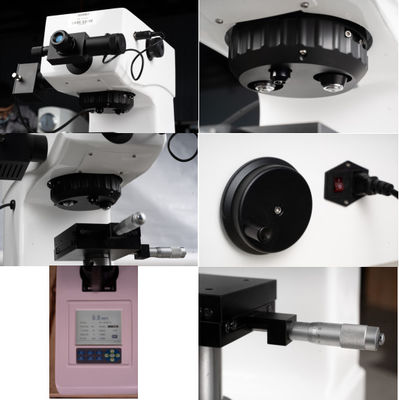

3.      The rotating turret is equipped with two different magnification objective lenses, 10X and 20X, which can be used to scan a wide range of sample contours at low magnification as needed.

4.      Both 10X and 20X magnification objective lenses are available for measurement, and 40X is optional.

5.      During the test, the pressure head and the objective lens automatically switch with each other, and the test point is automatically positioned accurately;

6.      It can be calibrated according to standard hardness blocks or length scales, and hardness correction can be performed automatically according to high, medium and low hardness values, making the hardness value more accurate.

7.      Conversion between various hardness values;

8.      All test parameters and test results are stored in a USB flash drive in Excel format to facilitate data processing and test report output;

9.      Test setting parameters are password protected;

10.   The light source uses LED lamp, which has a long life and no need to replace the bulb;

11.   Built-in camera, clearer images;

12.   Multiple languages including Chinese and English are available for selection ;

Ⅲ,Technical parameters:

Ⅴ,Standard accessories:

HVS—AXY Vickers hardness automatic measurement and control system

The HVS-AXY Vickers hardness automatic measurement and control system is a computer-controlled system independently developed by Naibo (Software Registration Certificate No.: 2016SR176822). It seamlessly connects with various models of Vickers (including Micro Vickers) Vickers hardness testers to form a perfect hardness tester automatic measurement system.

This automatic hardness measurement system is primarily used for Vickers hardness testing of various metals and some non-metallic materials. It can measure the hardness of various metal parts and parts after thermal post-treatment. It is also suitable for measuring the effective hardened layer depth, heat-affected zones of coatings and welds. It can also be used to observe the internal metallographic structure of various metal parts and to capture, display, and print images.

The system is particularly suitable for measuring the surface hardness, hardness gradient distribution curve and effective hardened layer depth of heat-treated workpieces.

一,         Technical Parameters

1.      The camera is built-in with 5 million pixels and the image is clear .

2.      Computer operating system: Windows 10

3.      High-precision automatic XY stage

4.      Measurement and control software

二,         Scope of supply:

三,         After-sales service

1.      Delivery Time

Delivery will be made within 10 working days after the contract is signed and effective.

2.      Technical Data

1)     Provide the purchaser with the factory quality verification warranty and complete random technical information along with the instrument;

2)     Provide the purchaser with a Chinese version of the instruction manual along with the instrument, including the instrument installation, operation, maintenance, use and repair manual;

3)     Special software with independent intellectual property rights and a backup CD are provided randomly, and users enjoy the lifelong right to use the software.

3.      Installation, commissioning, acceptance and training

1)     Responsible for free installation and debugging of the equipment after it arrives;

2)     At the user's site, both parties shall inspect and accept the appearance, operation and accuracy of the equipment according to relevant national standards, technical agreements, configuration lists, product technical parameters and factory technical indicators;

3)     After the final acceptance of the equipment, the supplier will be responsible for providing free on-site training on the use, maintenance and repair procedures of the equipment to the user's operating technicians for a period of 2 working days (to ensure that the user's technicians can operate independently and perform basic maintenance on the equipment).

4.      Warranty and Repair

1)     The product quality assurance period is 12 months;

2)     After the final acceptance of the equipment, parts and services will be provided free of charge during the warranty period and will be guaranteed to be timely and effective; (After the acceptance is completed, the warranty period will be calculated from the date of acceptance signature by both parties)

3)     After the equipment warranty period expires, we can still provide technical support and preferential spare parts supply. Repair fees outside the warranty period are negotiated by both parties.

5.      After-sales service commitment

1)     We have fixed maintenance service centers and professional maintenance personnel in China to provide lifelong maintenance services;

2)     When equipment breaks down, the supplier should respond within 8 hours after receiving the user's information, arrive at the user's site within 48 hours, eliminate the problem and put the equipment into use within 3 working days. If the equipment needs to be returned to the factory for repair, the supplier guarantees to provide similar equipment for temporary use to ensure that the user's test and inspection can proceed normally.

3)     Guarantee to visit the user at least once during the warranty period;

4)     Provide free technical support to users according to their requirements.
