รายละเอียดสินค้า:
|
| ชื่อ: | เครื่อง MPI แบบตั้งโต๊ะแบบเปียก | ใช้: | ตรวจจับข้อบกพร่องบนพื้นผิวและพื้นผิวใกล้ของวัสดุแม่เหล็กไฟฟ้า (เช่น เหล็ก) |
|---|---|---|---|
| แอปพลิเคชัน: | ตรวจสอบชิ้นส่วนเหล็ก | คำหลัก: | เครื่อง MPI แบบตั้งโต๊ะแบบเปียก |
| เน้น: | MPI machine wet bench HMP-10000AC/DC,Non Destructive Testing Equipment wet bench,MPI machine with AC/DC capability |
||

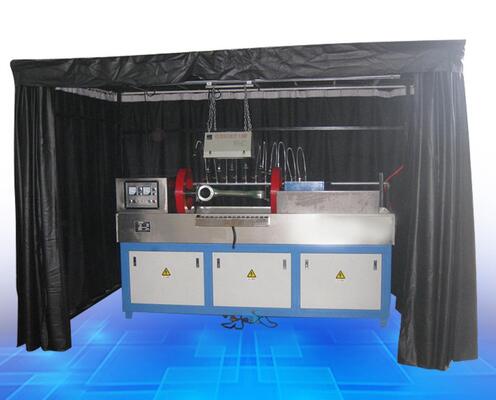

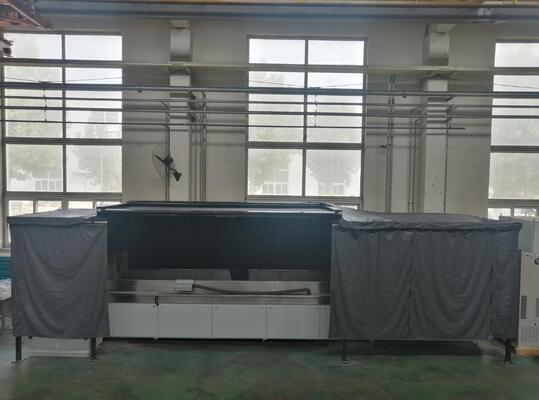

MPI machine wet bench type HMP-10000AC/DC
Summary:
Fluorescent magnetic particle flaw detector is used to detect cracks and slag inclusions on the surface and near surface of ferromagnetic workpieces (such as bolts, pin shafts, shaft sleeves, gears, gear rings, crankshafts, etc.) due to forging, quenching, grinding, fatigue, etc.
Core purpose: To achieve rapid, batch, and automated detection of surface defects on workpieces, replacing manual inspection and greatly improving detection efficiency and reliability.
|
Fluorescent Magnetic Particle Flaw Detector Technical Parameters |
|
|
electric current name |
(AC) 0-10000A (effective value) continuously adjustable, with power off phase control; (HWDC) 0-10000A (twice the average value) |
|
Circumferential magnetizing current(A) |
(AC) 0-24000A(Effective value) Continuously adjustable, with power off phase control； (HWDC) 0-24000AT(average value) |
|
Longitudinal magnetized magnetic flux potential(AT) |
(AC) 0-18000AT (effective value) continuously adjustable, with power off phase control; (HWDC) 0-18000AT (twice the average value) |
|
Optional coil inside diameter(mm) |
400 |
|
Optional maximum electrode spacing(mm) |
1800 |
|
host |
Split type (electrical control cabinet is separated from the host) |
|
sensitivity |
Type A test piece (30/50, 15/50) shows clearly |
|
Temporary loading rate |
≤20% |
|
control mode |
Manual/semi-automatic |
|
Operation interface (*) |
Button/touch screen |
|
Clamping mode(*) |
Electric,Pneumatic |
|
Rotation mode |
Electric |
|
AC magnetization method |
Circumferential magnetization, longitudinal magnetization,Compound magnetization |
|
AC demagnetization mode |
Automatic attenuation demagnetization |
|
Rectification mode |
Single-phase half wave |
|
AC and DC magnetization method(*) |
Circumferential AC magnetization, circumferential DC magnetization, Longitudinal AC magnetization, Circumferential DC longitudinal AC composite magnetization |
|
DC demagnetization mode(*) |
Ultra-low frequency demagnetization |
|
Ultraviolet lamp |
Hanging type, hand-held type |
|
Spraying time |
3"～6" / Manual |
|
Magnetization time |
0.5"~2"/times |
|
Rotation observation time |
5"～10"/week |
|
AC demagnetization time |
3"~5"/times |
|
Air source |
0.4-0.8MPa |
|
Power Supply |
Three phase five wire,380V±10%,50Hz |
|
Overall dimensions(mm) |
Length: 3.8m |
|
Width: 800~1200mm (width of darkroom: 1800mm) |
|
Mainly used for detecting defects on the surface and near surface of ferromagnetic materials (such as steel).
