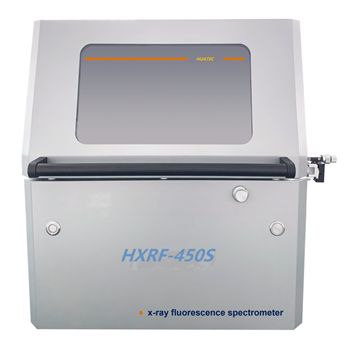

HXRF-450S High Stability X-ray Fluorescence Coating Thickness Spectrometer

The HXRF-450S XRF X-ray Fluorescence Coating Painting Thickness Tester is a high-performance instrument designed for precise coating thickness measurement and material analysis across various industries.

• Operating temperature: 15-30℃
• Relative humidity: 40%~50%
• Power supply: AC: 220V ± 5V

• Excellent long-term stability with minimal calibration requirements
• No sample preparation needed for coating systems, solid or liquid samples
• Comprehensive performance including coating analysis, qualitative/quantitative analysis, bath analysis, and statistical functions

Ideal for electronic components, semiconductors, PCB, FPC, LED brackets, auto parts, functional plating, decorative parts, connectors, terminals, sanitary ware, jewelry and other industries for surface coating thickness measurement and material analysis.

• Simple user interface with limited operator authorization
• Supervisor maintenance capabilities
• Automatic operator usage records
• Automatic locking for unauthorized operation prevention
• Sample chamber door sensor
• X-ray warning light
• Front panel security buttons

• Measures up to 5 layers (4 coating + substrate) simultaneously
• Analyzes 15 elements with automatic spectral line correction
• High measurement accuracy (to μin) with excellent stability
• Rapid non-destructive measurement (as fast as 10s)
• Analyzes solids and solutions with qualitative, semi-quantitative and quantitative capabilities
• Material identification and classification detection
• Comprehensive data statistics (average, standard deviation, etc.)
• Multiple output options (print, PDF, Excel) with comprehensive reporting
• Measurement position preview with 30× optical magnification
• Global service and technical support

• Electrically cooled SDD semiconductor detector
• Resolution: 129 ± 5 EV
• Amplification circuit module for sample characteristic X-ray detection

• Maximum filament current output: 1mA
• Semi-loss component, 50W, air cooling

• Maximum voltage output: 50kV
• Minimum 5kV controllable adjustment
• Self-contained voltage overload protection
