รายละเอียดสินค้า:
|
| ระดับความแข็ง:: | Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV) และ Shor | ช่วงการวัด: | HLD (170~960), HRA (59~85), HRB (13~100), HRC (18~68), HB (19~655), HV (80~976), HS (32~100) |
|---|---|---|---|
| ทิศทางการวัด: | 360° (แนวตั้งลง, แนวทแยงลง, แนวนอน, แนวทแยงขึ้น, แนวตั้งขึ้น) | แสดงผล: | หน้าจอ TFT LCD ขนาด 2.8 นิ้ว ขนาด 320 × 240 |
| เน้น: | Online Leeb hardness tester with warranty,Portable Leeb hardness tester,Non-destructive hardness testing equipment |
||

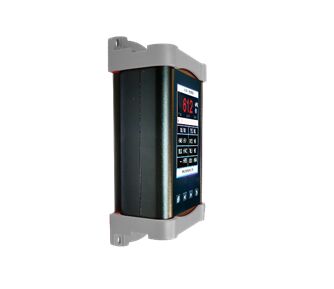

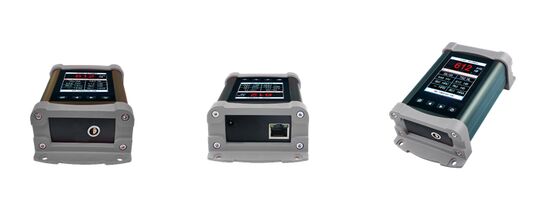

RHL-AI1600 Online Leeb Hardness Tester
The RHL-AI1600 online portable Leeb hardness tester features a 2.8- inch, 320x240 color TFT screen with delicate colors and rich display content. It is online powered and incorporates electromagnetic interference and surge protection designs, providing strong immunity. It also has an Ethernet port or RS485 communication interface, allowing connection to a PC or PLC controller for real-time data transmission.
| Serial Number | Impact device type | Standard Leeb hardness block hardness value | Indication error | Indication repeatability |
| 1 | D |
760±30HLD 530±40HLD |
±5 HLD ±8 HLD |
5 HLD 8 HLD |
| 2 | DC |
760±30HLDC 530±40HLDC |
±5 HLDC ±8 HLDC |
5 HLD 8 HLD |
| 3 | DL |
878±30HLDL 736±40HLDL |
±10 HLDL | 10 HLDL |
| 4 | D+15 |
766±30HLD+15 544±40HLD+15 |
±10 HLD+12 | 10 HLD+12 |
| 5 | G |
590±40HLG 500±40HLG |
±10 HLG | 10 HLG |
| 6 | E |
725±30HLE 508±40HLE |
±10 HLE | 10 HLE |
| 7 | C |
822±30HLC 590±40HLC |
±10 HLC | 10 HLC |
Features:
