รายละเอียดสินค้า:
|
| พิสัย: | 0~1300um 0~51.2mil | ความแม่นยำ: | ±(2.5%+1um) ±(2.5%+0.04mil) |
|---|---|---|---|
| ปณิธาน: | 0.1um/0.01มิล | การสอบเทียบ: | คะแนน: ศูนย์/50/100/250/500/1000um |
| สภาพแวดล้อมการทำงาน: | อุณหภูมิ:0~40°C(32~104°F) ความชื้น:20%~90%RH | ||
| เน้น: | digital coating thickness gauge,coating thickness gauge with probe,F&NF probe thickness meter |
||

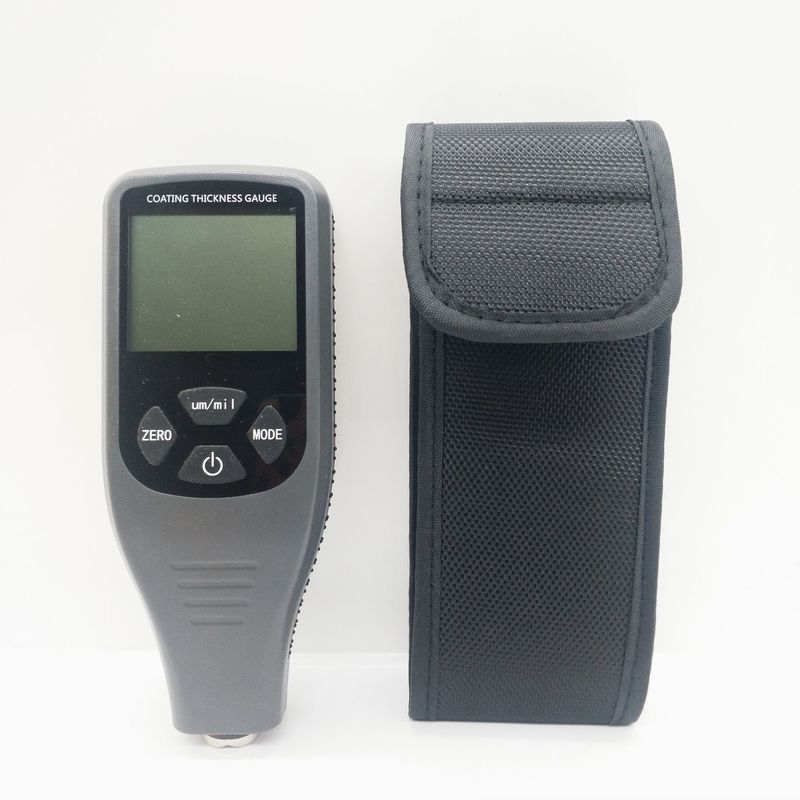

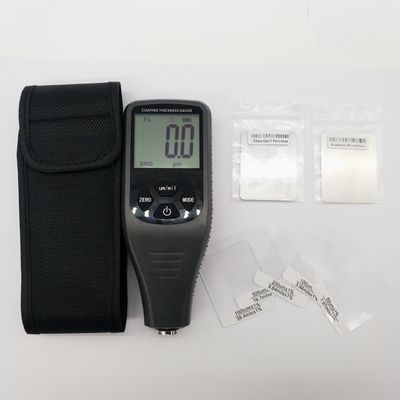

TG1956 Digital Coating Thickness Gauge 0~1300um F&NF Probe Auto Recognition
Built-in Black Light
Integral Probe F&NF, Auto detecting attribute of substrates
Nice shell design for easy reading
Built-in Silicone Slip Strip
Measurement Range: 0~1300um
Accuracy: ±(2.5%+1um)
Resolution: 0.1um
Zero Calibration and 50/100/250/500/1000um Calibration Points
5 minutes auto power off to saving power
Power Supply: 4 x AAA batteries
Operating Temperature: 0 to 40℃ (32 to 104℉)
Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight: 125g (4.41 oz)
Technical specifications
| Probe F | Probe N | |
| Principle | Magnetic Induction | Eddy Current |
| Range |
0~1300um 0~51.2mil |
0~1300um 0~51.2mil |
| Accuracy |
±(2.5%+1um) ±(2.5%+0.04mil) |
±(2.5%+1um) ±(2.5%+0.04mil) |
| Resolution | 0.1um/0.01mil | 0.1um/0.01mil |
| Calibration | Points: ZERO/50/100/250/500/1000um | |
| Units | um, mil | |
| minimum curvature radius convex: 1.5mm | ||
| minimum curvature radius concave: 25mm | ||
| minimum measuring area: Diameter 6mm | ||
| minimum thickness of substrate | 0.5mm(0.02”) | 0.3mm(0.012”) |
| Power | 4 x AAA batteries | |
| Operation Environment | Temperature:0~40℃(32~104℉) Humidity:20%~90%RH | |
| Size |
155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”) |
|
| Weight | 125g(4.41oz) | |
