รายละเอียดสินค้า:
|
| หน่วยความจำ: | 510 ไฟล์,47 ~ 341 กลุ่ม (เวลาผลกระทบ: 32 ~ 1) ต่อไฟล์ | ระดับความแข็ง: | body{background-color:#FFFFFF} 非法阻断154 window.onload = function () { docu |
|---|---|---|---|
| ช่วง UTS ความต้านทานแรงดึง: | 374 ~ 2652 เมกะปาสคาล | นาที. รัศมีชิ้นงาน (นูน/เว้า): | Rmin = 50 มม. (พร้อมวงแหวนรองรับพิเศษ Rmin = 10 มม.) |
| นาที. ความหนาของชั้นแข็ง: | 0.8มม | อินเทอร์เฟซข้อมูล: | ยูเอสบี 2.0, บลูทูธ |
| เน้น: | Portable Leeb hardness tester,HRB HRC HV hardness tester,Bluetooth TFT hardness tester |
||

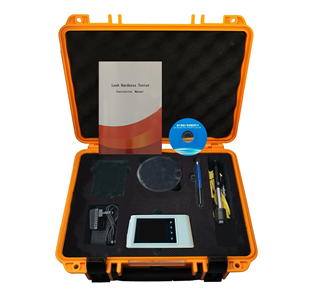

RHL-141 Portable Multi-Scale HRB HRC HV HB HS HL Leeb Hardness Tester with Bluetooth & TFT Display
Features:
-Advanced Leeb hardness model
-Automatic identification of Impact devices
-High performance rechargeable Li battery, intelligent charging management
-Optional Software to connect with PC,Support data query, storage, statistics and histogram display and other functions
-Mass storage,Bluetooth communication
-Upper and lower limit and sound alarm
-2.8” TFT,320*240 Pixel, showing all functions and parameters
-Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
-For all metallic materials
-Test at any angle, even upside down
-Wide measuring range
-Six Impact Devices are available for special application
-Battery low indication and sound alarm
Technical Specification
|
Hardness scale |
HL, HRC, HRB, HRA, HV, HB, HS |
|
Memory |
510 file,47 ~ 341 groups (Impact times:32 ~ 1) per file |
|
Measuring range |
HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100) |
|
Tensile strength U.T.S. range |
374 ~ 2652 MPa |
|
Accuracy |
±6HLD (760±30HLD) error of displayed value |
|
6HLD (760±30HLD) repeatability of displayed value |
|
|
Standard Impact Device |
D |
|
Data Interface |
USB 2.0, Bluetooth |
|
Optional Impact Devices |
DC / D+15 / G / C / DL |
|
Max. Workpiece Hardness |
996HV(For Impact Devices D / DC / DL / D+15 / C) |
|
|
646HB(For Impact Device G) |
|
Min. Radius of Workpiece (convex/concave) |
Rmin = 50mm (with special support ring Rmin = 10mm ) |
|
Min. Workpiece weight |
2 ~ 5kg on stable support |
|
0.05 ~ 2kg with compact coupling |
|
|
Min. Workpiece thickness |
5mm (Impact Devices D/DC/DL/D+15) |
|
1mm (Impact Device C) |
|
|
10mm (Impact Device G) |
|
|
Min. thickness of hardened layers |
0.8mm |
|
Power |
Rechargeable Li Battery, 3.7V, Li(2000mAh) |
|
Continuous Working time |
About 30h |
|
Charging time |
4 ~ 5 hours |
|
Operating temperature |
0 ~ 40ºC |
|
Humidity |
≤ 90% |
|
Overall dimensions |
212 × 80 × 35 mm |
|
Weight |
320g |
|
Standard delivery |
Main unit RHL-141 Impact Device type D Test block HLD Charger Brush Table support for main unit Connecting cable HUATEC calibration certificate Instruction manual Dataview Software |
|
Optional accessories |
Optional impact devices Optional support rings Other test blocks Micro Printer |
