รายละเอียดสินค้า:
|
| แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: | 220V, 50Hz | กำลังไฟพิกัด: | 120W |
|---|---|---|---|
| ความเร็วสูงสุด: | 32,000 รอบต่อนาที | ความจุของแจ็คเก็ต: | 0,8 มม., 1,6 มม., 2,4 มม., 3,2 มม |
| เน้น: | HPA-1P grinding polishing machine with speed control,multi-purpose on-site polishing machine,grinding machine for non-destructive testing |
||

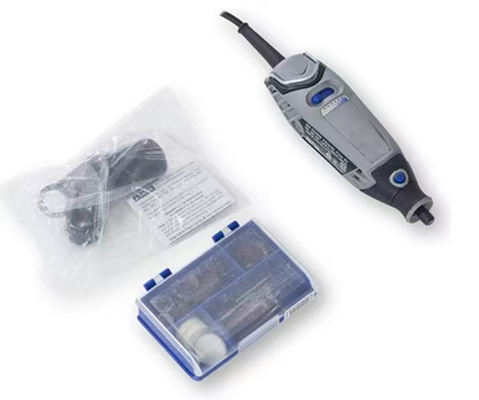

HPA-1P Multi-Purpose On-Site Grinding Polishing Machine with Speed Control
HPA-1P is a high-quality precision tool that can be used to perform delicate and intricate tasks. A wide range of accessories and attachments are available to perform a wide range of tasks including sanding, engraving, routing , cutting, cleaning and polishing.
Specification
| Rated voltage | 220V, 50Hz |
| Rated power | 120W |
| Rated speed | 32,000 RPM |
| Jacket capacity | 0,8mm, 1,6mm, 2,4mm, 3,2mm |
1. Use a fully extended, safety extension cord rated for 5 Amps .
2. This multi-function tool uses a high-speed variable frequency motor. Before each operation, check that the supply voltage matches the voltage indicated on the tool nameplate.
3. Always unplug the Multi-Tool when changing accessories, replacing collets, or servicing the tool.
Accessories List
|
Micro speed regulating grinding and polishing machine |
Speed 14000 - 32000 r /min , Power 120W, 5 adjustable speeds |
|
List of accessories |
Grinding attachment (407) 1 piece, Grinding attachment (408) 2 pieces, Grinding attachment (432) 2 pieces, Grinding attachment (445) 2 pieces |
|
Polishing attachment (414) 2 pieces, Polishing attachment (429) 3 pieces |
|
|
Cutting attachment (420) 5 pieces, Cutting attachment (426) 1 piece |
|
|
Cleaning accessory (403) 1 piece, Cleaning accessory (428) 1 piece |
|
|
Engraving attachment (191) 1 piece, grinding attachment (932) 1 piece |
|
|
Polishing accessories: chuck (401) 1, chuck (402) 1, polishing agent (421) 1, multi-function drill bit (150) 1, clamping key 1 |
|
|
1 finely processed handle |
|
|
Other attachments list |
Grinding head (P 80/120 / 220/320/500/1000 ) 6 indivual |
|
2 wool cloth wheels |
|
|
Velvet adhesive polishing cloth φ3 0 50 pieces |
|
|
Rubber grinding disc φ3 0 1 piece |
|
|
Grinding sandpaper 1 20#180#400#600#800#1200#2000# with adhesive φ3 0 10 sheets each |
|
|
Diamond polishing paste W 2.5 2 pieces |
