รายละเอียดสินค้า:
|
| ระยะห่างของอิเล็กโทรด: | 0~210มม | กระแสสูงสุด: | AC2.2A |
|---|---|---|---|
| อุณหภูมิในการทำงานเพิ่มขึ้น: | <18 ค | อัตราการโหลดชั่วคราว: | >50% |
| ความแรงของสนามสัมผัส: | > 2kA/m ที่จุดกึ่งกลางระหว่างขา/เสา | อุณหภูมิในการทำงาน: | -10 ̊+40 °C |
| ความชื้นสัมพัทธ์: | <80% | การป้องกันน้ำเข้า (IEC 60259): | IP54 |
| เน้น: | portable magnetic particle flaw detector,AC DC magnetic yoke detector,weld inspection flaw detector |
||

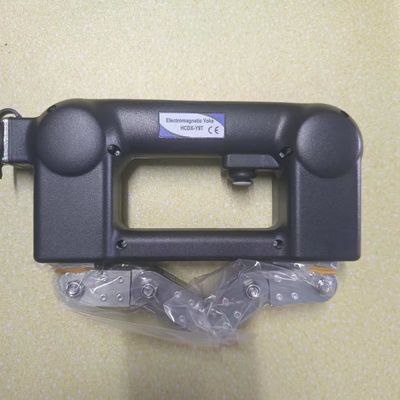

HCDX-Y9L AC DC Magnetic Yoke Portable Magnetic Particle Flaw Detector for Weld Inspection
Oerview
The HCDX-Y9L is a durable, high-strength AC DC agnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.
Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the HCDX-Y9L is ideal for inspection of welds and other remote testing.
Solid-state controls allow the operator to use AC DC magnetic fields for surface indications to meet all inspection needs.
The charging type magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, small size, light weight and convenient portability. The flaw detector can be used directly in DC magnetized power supply (DC-AC inverter battery pack),which is efficient and portable. It is suitable for hull weld inspection, high altitude steel structure weld detection and pressure vessel internal operation. This instrument is suitable for steel structure parts of power, metallurgy, petrochemical, machinery and other industries, such as boiler, pressure vessel, pressure pipe, ship body weld and welding structure of various types of ferromagnetic material surface and magnetic particle flaw detection of near surface defect.
This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".
AC magnetization of rechargeable battery pack MT-600
|
Name |
DC magnetized power supply |
|
Model |
MT-600 |
|
output voltage |
AC |
|
Power type |
Lithium battery |
|
Charging current |
2A |
|
Battery capacity |
4400Ah |
|
Working time |
About 4h |
|
Shape size |
55×95×180mm |
|
weight |
1.0kg |
Product features
Sealed, durable construction
Chemical and abrasion resistant
AC operation for surface and sub-surface inspection
Exceeds ASTM lifting specifications
It is possible to use AC magnetized power supply (DC-AC inverter battery pack) to supply AC power without any direct insertion to AC power supply.
The DC magnetizing power supply (DC battery pack) can be used to realize the DC magnetization function.
When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.
The power display function can display the current battery power, and has the function of sound and light alarm.
Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.
Adjustable magnetization
Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.
Technical parameter
Working temperature: -10 ~ +40 C
Storage temperature: -20 ~ 50 C
Relative humidity: <80% non condensation
Work temperature rise: <18 C
Temporary load rate: >50%
Sensitivity: A1 standard test piece 15/50 groove clearly displayed.
AC minimum power hoisting power: >4.5kg (44N)
C minimum power hoisting power: >18.1kg (177N)
Electromagnetic Yoke: HCDX-Y9L
Electrode spacing: 0～210mm
Maximum current: 2.8A
Weight: 2.4kg
major function: Direct alternating current magnetization

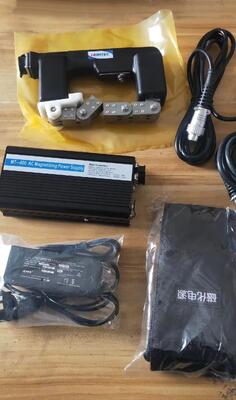

Standard configuration:
Magnetic powder flaw detector host HCDX-Y9L 1pc
Power line 1
Rechargeable type DC-AC inverter battery pack MT600 (AC magnetization power supply) 1
AC power backpack 1
Power adapter 1
AC output connection line 1
Instrument box 1
