รายละเอียดสินค้า:
|
| เอาท์พุต: | กระแสสลับ 38V 10A | แหล่งจ่ายไฟ: | ไฟฟ้ากระแสสลับ 220V ± 10% 50HZ 5A |
|---|---|---|---|
| ความเร็วในการตรวจสอบ: | ≥6 ม./นาที | อุณหภูมิที่เพิ่มขึ้นของโพรบ: | ≤60℃ |
| เวลาแม่เหล็ก: | ≤3วินาที เวลาช่องว่าง ≥5วินาที | ||
| เน้น: | magnetic flaw detector with adjustable probes,ferromagnetic testing flaw detector,MCU controller flaw detector |
||

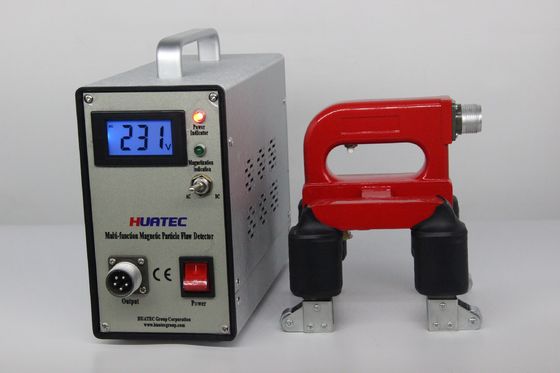

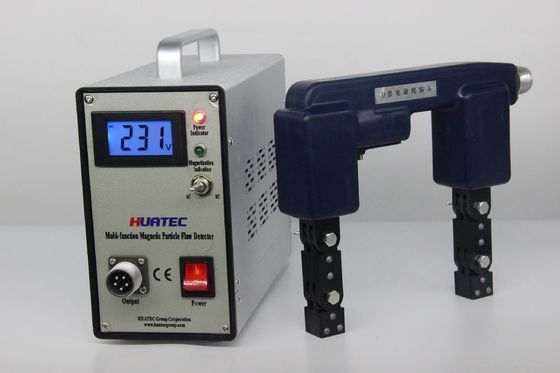

HCDX-ISC Magnetic Flaw Detector with Adjustable Probes & MCU Controller for Ferromagnetic Testing
HCDX-ISC composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.
AC and DC switchable for HCDX-ISC serial portable multifunction magnetic particle flaw detector.
All optional probes parameters:
|
D type probe |
Lifting force: AC≥5Kg DC≥18Kg (no joints) Pole distance: 50-200mm (adjustable) Operating current: ≥8A Working voltage: AC=38V, DC=9V Weight: 2.5 Kg |
|
Ａtype probe |
Lifting force: AC≥ 4.5kg DC≥18Kg Pole distance: 20-160mm (adjustable) Working voltage: AC=38V, DC=9V Weight: 2.0 Kg |
|
Ｏtype probe |
Central magnetic intensity: 180Oe Working voltage: AC=38V Inside diameter: 150 mm Weight: 2.5 Kg |
|
Ｅtype probe |
Lifting force: ≥12Kg Distance: 110 mm Operating current: ≥7A Inspection speed: 6 m/min Working voltage: 38 v left, 2 Weight: 3.0 Kg |
HCDX-ISC serial portable multifunction magnetic particle flaw detector adopts 8-bit MCU as the controller (with the phase controlled circuit), In addition, the program of MCU can enjoy lifetime free upgrades, and type A, D, E, O probe can be configured according to user requirements.
Application:
Mainly used to detect surface and near surface cracks of ferromagnetic metal parts.
Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.
The standard probes introduction for model HCDX-ISC:
Type D probe (electromagnetic yoke probe): equipped with movable joints, can magnetize and detect the surface workpiece.
Type A probe (horseshoe probe): suitable for all kinds of fillet weld, large workpiece inside and outside corners of local magnetization inspection, equipped with working lights.
Technical parameters:
Power supply: AC 220V ± 10% 50HZ 5A
Output: AC 38V 10A
Type A.D.E.O probes are optional and available
Inspection speed: ≥6 m/min
Temperature rise of probe: ≤60℃
Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds
Weight: about 6.5Kg (main unit)
Controller size: 95x45x75mm (L*W*H)
Carrying case size: 170x140x70mm (L*W*H)
Standard delivery:
Host HCDX-ISC 1
Type D yoke probe 1
Type A probe 1
The power line 1
The probe line 1
Standard specimen 1
Operation manual 1
Certificate 1
Optional accessories:
Type A probe
O the probe
E probe
D probe
Dead weight
Test specimen
UV light
