รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องตรวจจับวันหยุด | แบบอย่าง: | HD-101 |
|---|---|---|---|
| ช่วงเครื่องตรวจจับ: | 0.05-10มม | แหล่งจ่ายไฟ AC: | 110-230V |
| เน้น: | holiday detector for protective coatings,pinhole detector non destructive testing,coating thickness holiday detector |
||

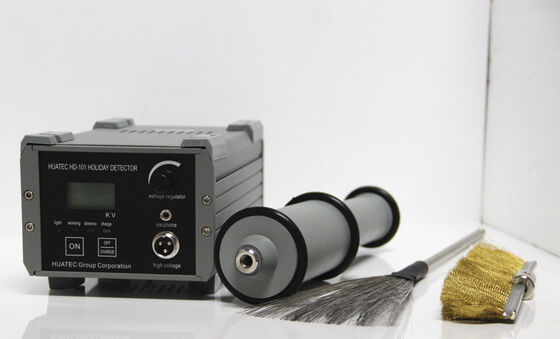

Holiday Detector Location of Pinholes Bare Spots or Thin Points in Protective Coatings
Features
AC 110-220V power supply, safe and reliable (for 24 hours of continuous work without stop)
Low power consumption, small size, light weight with high sensitivity
Easy to operation, intuitive and convenient
It is much safer for the user for it overcome domestic spark tester machine with high-voltage electrostatic phenomenon
Technical specifications
Detector range: 0.05-10mm
Output voltage: 0.8-35KV
AC power supply: 110-230V
Battery: 12V/2800mA
Dimensions: 220×130×88mm
Weight: 2.2Kg
Technical parameters
| ParametersModel | HD-101 | HD-102 | HD-103 | HD-101M |
| Detector range | 0.05～10mm | 30 um～1.5mm | 0.05～10mm | 0.05～10mm |
| Output voltage | 0.6kv～30kv | 600v～8000v | 0.8kv～35kv | 0.6kv～30kv |
| Leak source memory | No | No | No | Yes,99 data |
| Rechargeable Battery | 12V/2800mA | |||
| AC power supply | 110-230V | |||
| Consumed power | About 3W | ≤5W | About 6W | About 6W |
| Main unit size | 220 × 130 × 88 mm | |||
| Backlight | Yes | |||
| Display | 3 digits LCD | |||
| Alarm | Earphone, buzzer alarm, light alarm | |||

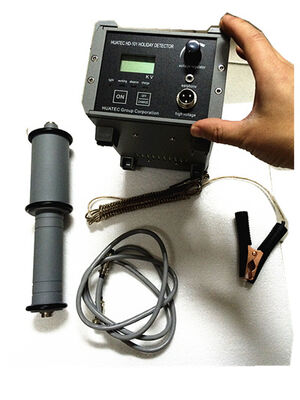

Standard delivery
Host 1pc
High voltage hand handle 1pc
Ground Wire 1pc
Fuse 2pc
Aluminum Box 1pc
Manual 1pc
Certificate 1pc
Fan brush 1pc
Flat brush 1pc
