รายละเอียดสินค้า:
|
| วัสดุ: | เหล็ก 1018 | มาตรฐาน: | IIW ISO 19675：2017 |
|---|---|---|---|
| เน้น: | PAUT phased array calibration block,ultrasonic testing SDH holes block,radius calibration block NDT equipment |
||
The Phased Array Radius Calibration Block is a general purpose Phased Array calibration block used for evaluation of system performance characteristics. Use it as baseline block to determine long-term instrument performance changes, generate DAC curves, evaluate focusing ability, beam steering capability, and system resolution. With a variety of SDH targets at various metal paths, this small, lightweight block is also perfect for customer demonstrations of phased array ultrasonic capabilities.The PAUT IIW Block, made in accordance with IIW ISO 19675:2017 .

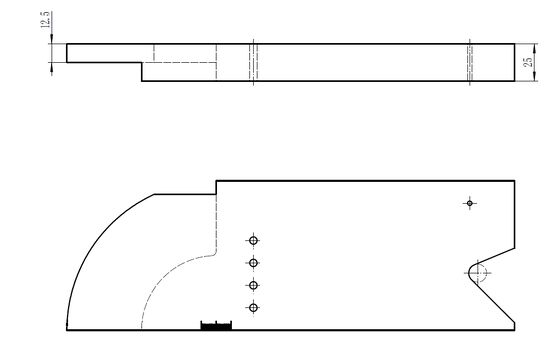

Geometry:
| Dimensions | 25mm wide x 100mm tall x 300mm long, with 100mm and 50mm radii |
| Material | 1018 Steel, |
