รายละเอียดสินค้า:
|
| ความสูงสูงสุดของชิ้นทดสอบ: | 220 มม. | หน่วยวัดขั้นต่ำ: | 0.625µm |
|---|---|---|---|
| เวลาแห่งการคุ้มครอง: | 5~60วิ | ช่วงทดสอบความแข็ง: | 8~650HBW |
| ระยะห่างของหัวกด-ผนังด้านนอก: | 135มม | กำลังขยายทั้งหมด: | 20x |
| แหล่งจ่ายไฟ: | AC220+5%, 50~60เฮิร์ต | ||
| เน้น: | High Precision Brinell Hardness Meter,Automatic Loading Hardness Tester,Industrial Laboratory Hardness Testing Equipment |
||

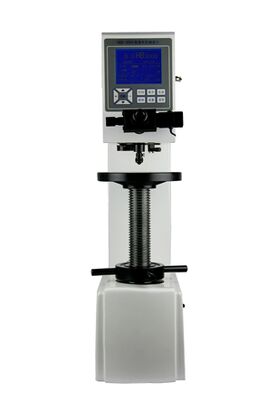

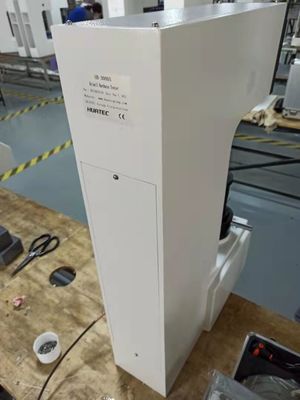

HB-3000D High Precision Optical Automatic Loading Brinell Hardness Meter for Industry Laboratory
Main Features:
HB-3000D Digital Brinell hardness tester with the latest development, has the domestic advanced water product of a new generation of Brinell hardness tester, the machine adopts electronic automatically add load, computer software programming, high rate of optical measurement, photoelectric sensors system. The operating process and the results of the trial data are available in large LCD display screen, the experimental results of data can be through the printer output.
Technical Specifications:
|
Model |
HB-3000D |
|
Brinell Scale |
HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100, HBW10/1500 HBW10/3000 HBW10/250 HBW10/500 HBW10/1000 |
|
Testing Force |
62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N) |
|
Max Height of Specimen |
200mm |
|
Main Measuring unit |
0.625µm |
|
Net Weight |
About 90kg |
|
Power supply |
AC220+5%,50~60Hz |
|
Overall Dimension (mm) |
550*210*750mm |
|
Duration time |
5~60s |
|
Hardness testing Range |
8~650HBW |
|
Magnification of Microscope |
20X |
|
Carried Standard |
|
|
135mm |
|
|
Indication of Hardness Value |
LCD display, Printer Output, Inside Printer |
Application areas:
Metallurgy ,metrology , Building materials, research institutes ,hardening shops, stainless steel, automotive, railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,
Workpieces application:
Non-hardened steel, cast iron, non-ferrous metals, alloys bearing ,plates, sheets, motor blocks, rails, rings, bars, tires, wheels, castings
Standard Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Objectives 20x |
1 |
Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter |
Each 1 |
|
Standard Blocks |
3 |
Large, Medium, “V” shaped Testing Table |
Each 1 |
|
Power Cable |
1 |
232 Cable |
1 |
|
Manual |
1 |
Product certificate, Printer Manual |
Each 1 |
