รายละเอียดสินค้า:
|
| ความเข้ม: | ≥8000uW/ซม.² | แสงสีขาว: | ≥1200LUX |
|---|---|---|---|
| ระดับความขาว: | ≤20LUX | พื้นที่ครอบคลุม: | 220 มม. |
| พลัง: | ยูวี LED-9VA, ไฟ LED-3VA | เวลาสะสมแบตเตอรี่: | UV LED 4-5H หรือแสง 16H |
| ความจุของแบตเตอรี่: | 5800mA/H 12.6V | ||
| เน้น: | LED UV black light lamp,NDT magnetic particle testing lamp,UV lamp for non-destructive testing |
||

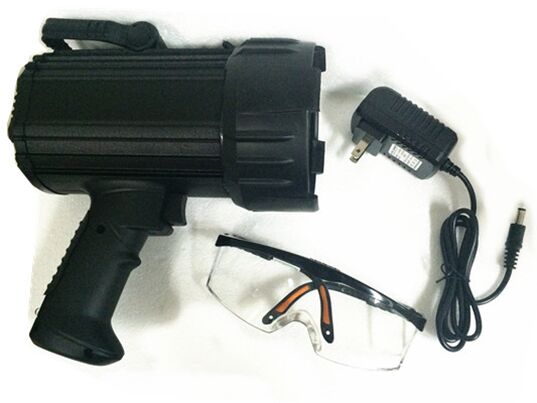

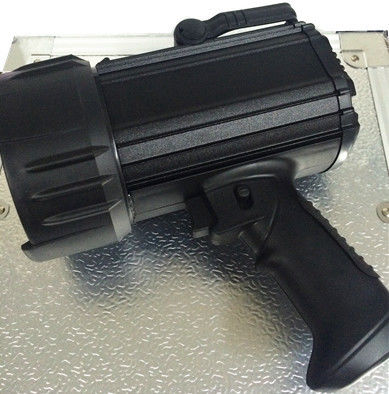

DG-8W LED UV Black Light Lamp for NDT Magnetic Particle Testing
Characteristic:
Internal batteries
Pre-alert and protection of low power
Light source life 30000H
Meet standard:ASTM E3022-2015 or JB/T 8290-2011
Technical specifications
|
Item |
DG-8W |
|||
|
Standard |
JB/T 8290-2011 |
|||
|
Intensity≥ |
8000uW/cm² |
|||
|
White light≥ |
1200LUX |
|||
|
White levels≤ |
20LUX |
|||
|
Area covered |
220mm |
|||
|
Power supply |
AC100-240V 50/60Hz |
|||
|
Power |
UV LED-9VA,LED Light-3VA |
|||
|
Wave length |
Indoor temperature 25℃ 365nm±3nm(UVA) |
|||
|
Outline dimension |
203mm(W)*110MM(D)*220mm(H) |
|||
|
Weight |
1kgs |
|||
|
Battery capacity |
5800mA/H 12.6V |
|||
|
Battery cumulative time |
UV LED 4-5H or Light 16H |
|||
Feature:
9av power saving of power consumption
30000H life expectancy of light source
0 UV-B contained
Battery endurance 5-6hrs
Pre-alert and protection of low power
Weight 1kg only including batteries
Build in battery, no wiring outside, can change battery easily
Three minute delay(power saving)//constand lighting,mode can be switched
Quartz and optical glass module, not PMMA material, excellent weather resistance
Continuous operation and external surface temperature rises less than 5 Celsius
No need to preheat, instant to reach 100% power
With UV and white light dual function, one hand switch.
White light less than 20LUX
