รายละเอียดสินค้า:
|
| วัสดุ: | โลหะผสมสังกะสี | ||
|---|---|---|---|
| เน้น: | Industrial ultrasonic probe housing,Ultrasonic probe housing with crystal holes,NDT equipment probe housing |
||

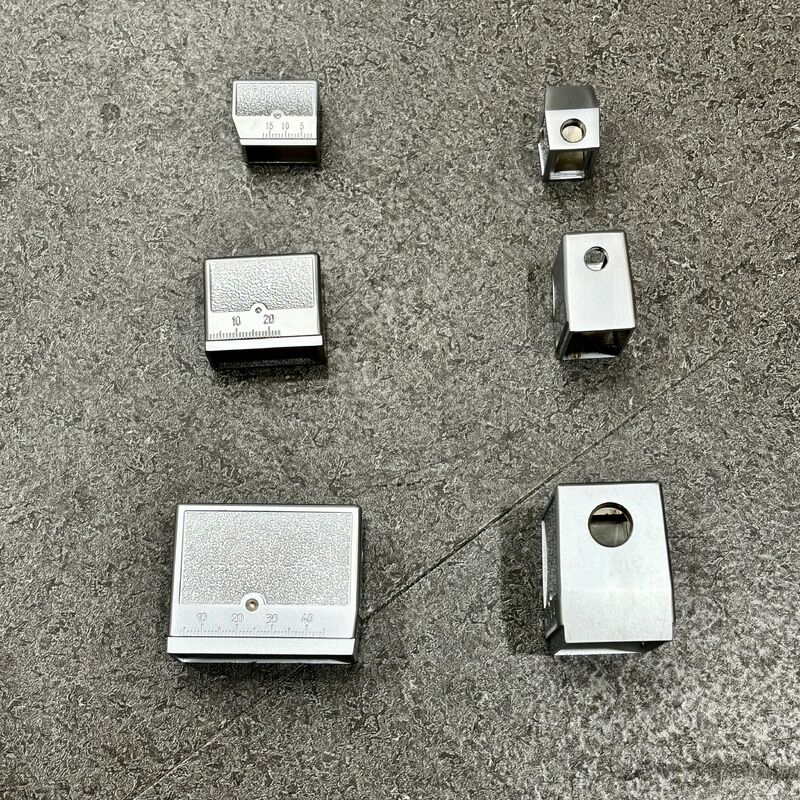

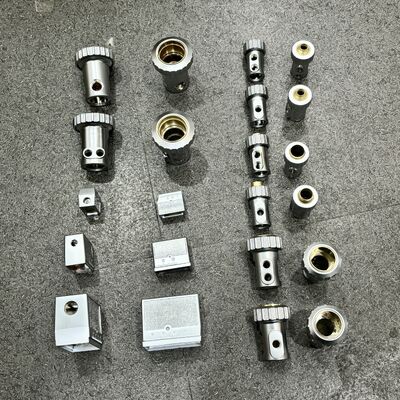

Industrial Ultrasonic Probe Housing with Various Crystal Hole Sizes
Single Contact (Stainless steel Inner ring selectable, hole dia. Up to 15 mm standard open hole dia. For crystal, 10.2, 12.2, 12.85 mm)
Dual Contact (Install 2-Microdot equivalent or 2-mini-Lemo equivalent)
Dual Contact (Stainless Steel Inner ring selectable, hole dia. up to 15 mm standard open hole dia. For crystal, 10.2, 12.2, 12.85 mm)
Angle Beam Contact (Housing inside dimension22x12. 7 mm, good for 8x9 mm crystal)
Contact (Stainless Steel Inner ring selectable, hole dia. up to 25 mm standard open hole dia. For crystal,25 mm)
Angle Beam Contact (Housing inside dimension 26.7x51.2 mm, good for 20x22 mm crystal)
| Probe housing | 6x6; 8x9,d6; |
| Probe housing | 14x14,d10 |
| Probe housing | d12,d14 |
| Probe housing | 20x24,d20 |
| Probe housing | d24 |
